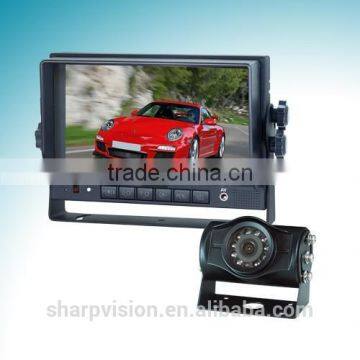

7 inch rear vision car reversing camera system

7 inch rear vision camera system

Features of monitor(MO127D):

7 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
 Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
 Multi-languages of display available: English, French, Portuguese,Spanish, Russian, Dutch, German, Italian.
Automatic front panel LED activation at night convenient for the users
Mirror and normal image switch available
Full-function remote controller
 Multiple video formats available: PAL /AUTO/NTSC
 13-Pin: 3 cameras inputs and 1 DVD input.
 22-Pin: 4 cameras inputs, 1 DVD input, 1 video output and 1 audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Built-in speaker
Automatically switches to back-up, left or right side camera views.

Features of Camera(CW-651)
Streamlined appearance
Compact size for more convenient installation
Waterproof and vandalproof
Night vision available
IR distance: 12 m
Infrared LED light: 10
Mirror/ Normal image switch (depending on the chips)
Distance label selectable to be open or closed.

7" TFT- LCD color monitor with digital screen - MO-127D
Product: 7" TFT- LCD color monitor with digital screen
Audio output: 1W.
Loudspeaker: one 15x24mm round loudspeaker.
Power supply: Automobile storage battery (10-32V).
Power consumption: about 6W .
Outer dimension: 182mm (W) × 122mm (H) × 26mm (T) (without flush mount),
198mm (W) × 138mm (H) × 31mm (T) (with flush mount)
Dot pitch: 0.192 (H) × 0.1805 (V).
Resolution: 800×3 (RGB) × 480.
Contrast: 500:1.
Brightness: 400cd/m².
Viewing angle: U: 50 / D: 60, R/L: 70.
Operating temperature: -20~+70ºC,RH90%.
Storage temperature: -30~+80ºC,RH90%.
