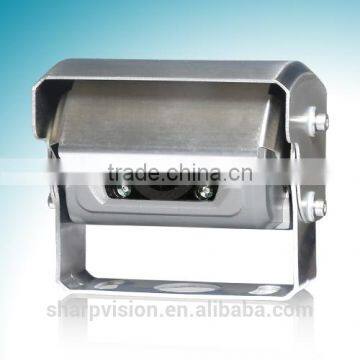

Waterproof metal mini camera for bus with autoshutter

Waterproof metal mini camera for bus with autoshutter Features:

Extra smaller
Stainless-steel sun-shield and U-bracket
With auto shutter

• Super wide angle (150°)
• Automatic heating when the camera's running temperature is below 10°C(optional)
• Performs in rugged conditions
• Distance label selectable to be open or closed
• Waterproof and weather resistant housing for outdoor use
• Night vision available, day/ night sensor for automatic adjustment
• IR distance: approx. 8m
• Infrared LED light: 12
• Mirror/ Normal image switch (depending on the chips)

PC1089 Features:

• Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089N
• Wide power supply input: 10~32V ; Working temperature: -30°C~70°C.
• With infrared lights; Night vision can auto switch to B/W mode. Good night vision performance, small noise
• and no color aberration.
• IR-CUT optional, effectively avoid color aberration in daylight. eg. shooting green plant in high fidelity in the daylight.
• External mirror and normal image adjustable, audio optional, and P/N available.

1/3" COLOR CMOS Specifications

• Image device: Pixelplus  1/3" Color CMOS    PC1089N
• TV System: PAL/NTSC
• Effective Pixels: 728 x 488 pixels
• Sensing Area: 4.6228mm x 3.6112mm
• Scanning System: 2:1 Interlace
• Sync. System: Internal
• Resolution: 500 TV Lines
• Horizontal Sync. Frequency: 15.625KHz/15.734KHz
• Vertical Sync. Frequency: 50Hz/60Hz
• Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
• Microphone: Optional
• Video Output: 1.0Vp-p, 75Ohm
• Gamma Consumption: 0.45
• AGC: Auto
• Signal to noise ratio: Better than 48dB
• White balance: Auto
• Electronic Shutter: Auto:1/50 (PAL)1/60(NTSC)-1/100000
• Backlight Compensation: Auto
• Current Consumption: Day: 12V/80mA; Night: 12V/120mA; max. 530mA (Heating open)
• Power Supply:  10~32V
• Operating Temperature: -30°C- +70°C, RH 95% MAX
• Storage Temperature: -40°C- +80°C, RH 95% MAX
• Lens Angle: 120° /150°

Image device:1/3”   CCD
