4pairs 0.5mm CAT 5E UTP, Pure Cable Stranded Pvc Sheath Network Cable

4pairs 0.5mm CAT 5E UTP, pure cable stranded pvc sheath network cable.

Conductor:

Material: solid bare copper

Number of pairs: 4 pairs

AWG: 23AWG

Conductor diameter: 0.57 ±0.003mm

Insulation:

Material: PE

Diameter: 1.02 ±0.005mm

Average thickness: 0.225mm

Minimum point thickness: 0.2245mm

First screen: Aluminum Foil (superposition rate: 25%)

Overall screen: 48/0.1mm TC braid shield (braid density: 40%)

Jacket rid cord: optional

Sheath:

Material:PE or LSZH

Nominal diameter: 6.0 ±0.2mm

Average thickness: 0.55mm

Minimum point thickness: 0.545mm

Includes:

 Ployester Film

Jacket:PE /LSZH

Standard:

YD/T1019-2001, TIA/EIA-568B, ISO/IEC11801,ISO/IEC61156

Application :

Horizontal cabling in working area.Used in voice system,ISDN,

ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.

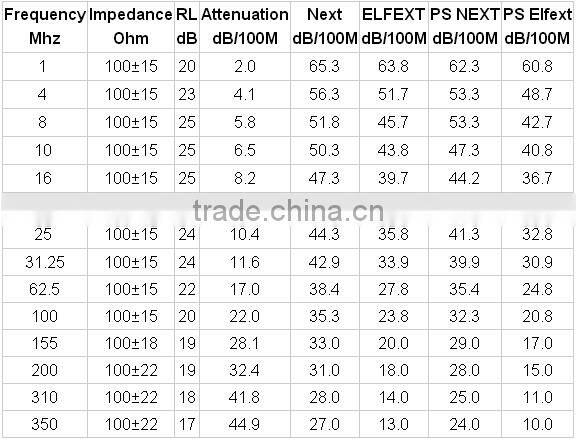

Characteristic of Networking Cable

4pairs 0.5mm CAT 5E UTP, pure cable stranded pvc sheath network cable:

100, 200, 305m/roll, 100, 200 and 300 yards/rollInner: Wooden reel, plastic reel and paper reelOuter: Carton box, pull out box and pallet Packing

 Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.

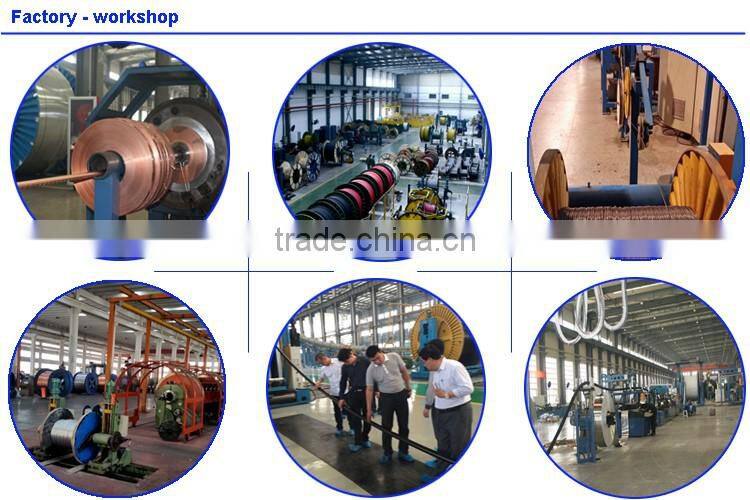

    The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.

1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.

 1.what is our payment term ?
