Factory Price 75ohm rg Series 14AWG Copper/CCS Conductor PE/PVC Jacket Rg11 Coaxial Cable
- Qingdao/Shanghai/Tianjin china electric cable
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Industrial Application and PVC Insulation Best Price Utp Cat5e Lan Cable
-
Factory Price Cat5 Cat5e Network Cable for Outdoor
-
Factory Price Bare Copper Conductor 2x5x0.10mm Cat6 Cat5 Network Cable for Outdoor
-
Copper Clad Aluminum Conductor PVC Insulation 4x5x0.10mm Cat5 Cat6 Network Cable
-
Copper Clad Steel Conductor PVC Insulation 6x5x0.10mm Cat5 Cat5e Cat6 Network Cable
-
Copper Clad Steel Conductor PVC Insulation 8x5x0.10mm Cat5 Cat5e Cat6 Network Cable
Product Details
| Place of Origin | Henan, China | Brand Name | zhengzhou Hongliang | |
| Model Number | Electrical Wire | Insulation Material | FEP | |
| Type | Low Voltage | Application | Telecommunication | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Item name:factory price 75ohm rg series 14AWG copper/CCS conductor PE/PVC jacket rg11 coaxial cable
1) Construction | ||
Center Conductor: | 1.63±0.01mm CU/CCS | |
Dielectric: | 7.11±0.1mmFoam PE | |
Shield: | Al Foil | |
Braid Coverage: | 40%-95%Al-Mg | |
Jacket: | 10.16±0.1mm PVC/PE | |
Jelly/APD | Per Customer’ Special Requirement | |
2) Characteristics | ||
Sparker Test: | 4000VAC | |
Impedance: | 75±3 Ohm | |
Capacitance: | 50±3pF/m | |
Velocity of Propagation: | 85% | |
Return Loss: | 20dB min (5-1000MHz) | |
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 0.38 | 1.25 |
55 | 0.96 | 3.15 |
250 | 2.05 | 6.72 |
300 | 2.25 | 7.38 |
450 | 2.75 | 9.02 |
600 | 3.18 | 10.43 |
750 | 3.65 | 11.97 |
865 | 3.98 | 13.05 |
1000 | 4.35 | 14.27 |
RG Series
| Construction | |||||
| Item | RG58 | RG59 | RG6 | RG7 | RG11 |
| Inner Conductor(mm) | 0.5 | 0.81 | 1.02 | 1.29 | 1.63 |
| Dielectric(mm) | 2.9 | 3.66 | 4.57 | 5.72 | 7.11 |
| Shield(mm) | 3.15 | 3.84 | 5.40 | 5.90 | 7.29 |
| Jacket(mm) Standard-shield | 5.10 | 6.10 | 6.90 | 8.10 | 10.16 |
| Jacket(mm) Tri-shield | 5.20 | 6.20 | 7.06 | 8.20 | 10.16 |
| Jacket(mm) Quad-shield | 5.74 | 6.73 | 7.54 | 8.64 | 10.34 |
| Electrical Characteristics | |||||
| Impedance(Ω) | 75 | 75 | 75 | 75 | 75 |
| Capacitance(pF/m) | 55 | 55 | 54 | 52 | 51 |
| Velocity of Propagation(%) | 84 | 84 | 84 | 85 | 86 |
Max Attenuation (dB/100m) | Mhz | RG58 | RG59 | RG6 | RG7 | RG11 |
| 5 | 6.15 | 4.00 | 2.66 | 1.87 | 1.25 | |
| 55 | 8.25 | 6.76 | 5.25 | 4.17 | 3.38 | |
| 211 | 15.87 | 12.93 | 10.10 | 8.04 | 6.59 | |
| 270 | 17.93 | 14.76 | 11.48 | 9.15 | 7.55 | |
| 300 | 18.56 | 15.49 | 12.14 | 9.68 | 7.97 | |
| 330 | 19.67 | 16.27 | 12.76 | 10.17 | 8.37 | |
| 400 | 21.42 | 17.98 | 14.11 | 11.25 | 9.28 | |
| 450 | 23.08 | 19.13 | 15.03 | 12.01 | 9.91 | |
| 550 | 24.39 | 21.23 | 16.70 | 13.35 | 11.02 | |
| 750 | 28.14 | 25.00 | 19.69 | 15.78 | 13.09 | |
| 870 | 30.26 | 27.03 | 21.33 | 17.09 | 14.21 | |
| 1000 | 32.55 | 29.10 | 22.97 | 18.44 | 15.32 | |
Min Screening Effectiveness(dB) | 5MHz | 85 | 85 | 85 | 85 | 100 |
| 50MHz | 85 | 85 | 85 | 85 | 100 | |
| 300MHz | 90 | 90 | 90 | 90 | 110 | |
| 550MHz | 90 | 90 | 90 | 90 | 110 | |
| 1000MHz | 90 | 90 | 90 | 90 | 110 | |
| VSWR, Min(dB) | 5 ~300 | 22 | 22 | 22 | 22 | 22 |
| 300 ~1000 | 20 | 20 | 20 | 20 | 20 |

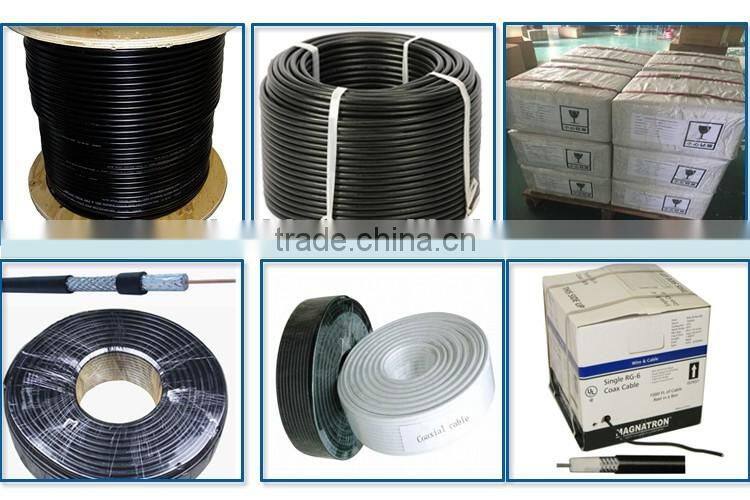

Picture Show
Features of Cable
• Low attenuation
• Low standing wave ratio
• Favorable shielded function
• Broadband
• Excellent bend adjusting double shielded coaxial cable .
Application of Cable
RG series cable are mostly used for transmiting signal for TV or video device.
Material:
Rolls without drum / wooden drum / steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, Qingdao, or other ports as per your requirements.
Sea freight and insurance fee:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Equal and mutual benefit
4)Honesty and profession
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
