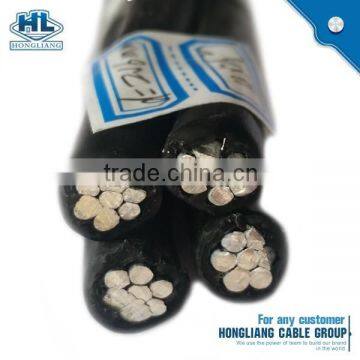

service drop ABC cable aluminum overhead Cable with PE PVC or XLPE Insulation 35mm2 aluminum cable

1,0.6/1KV.
2. Conductor: Pure annealed copper or aluminum.
3. Insulation: XLPE/PE/PVC.
4. Cores: 1 C, 2C, 3C, 4C.
5. Nominal Cross-section: 10mm2 to 400mm2.
6. Standard: GB/T 14049-2008 IEC 60502.
7. Max. Operating Temperature: XLPE/PE: 90 °C , PVC : 70 °C .
8. Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q.
9.Packing: Wooden Drum or according to the customer requirement.
10.Remark: The cable can be of flame retardant, fire resistance and other property.

service drop ABC cable aluminum overhead Cable with PE PVC or XLPE Insulation 35mm2 aluminum cable e.

For single core PVC or XLPE insulated or covered aerial cable without messenger or neutral conductor,
the phase conductor may be AAC or AAAC or ACSR or Copper.

For more than one core PVC or XLPE insulated 11kv abc cable with or without messenger or
neutral conductor and with or without street lighting conductor, the phase conductor
and street lighting conductor are AAC with PVC insulation,and the messenger or neutral conductor is AAAC or ACSR with or without

permissible continuous operating temperature of conductor: 90oC(XLPE insulated), 70 oC (PE insulated), 70 oC (PVC insulated);

temperature of conductor during short-circuit ( 5s max. duration) shall not exceed: 250oC(XLPE insulated), 130 oC (PE insulated), 160 oC (PVC insulated); 11kv abc cable
The ambient temperature under installation should not be lower than: -20 oC.

Application of Aerial Bundle ABC Cable

PVC or XLPE insulated 11kv abc cable as a new-type aerial cable is used for overhead electric power transmission,
extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

1, 0.6/1kv service drop ABC cable aluminum overhead Cable with PE PVC or XLPE Insulation 35mm2 aluminum cable. Construction

service drop ABC cable aluminum overhead Cable with PE PVC or XLPE Insulation 35mm2 aluminum cable

a.Application

Used to supply 3-phase power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts phase-to-phase or less and at conductor temperature not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.

b.Construction

0.6/1kv service drop ABC cable aluminum overhead Cable with PE PVC or XLPE Insulation 35mm2 aluminum cable packaging

Within 2 weeks after confirming the order

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.

Zhengzhou Hongliang Cable Co.,ltd is one of the branch of  Huadong Cable?Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1988,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.

  Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC  cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate.  We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.

0.6/1kv service drop ABC cable aluminum overhead Cable with PE PVC or XLPE Insulation 35mm2 aluminum cable service

Large production capacity, short delivery.

Strict QC checking before delivery.

OEM/ODM service available, help you on designing.

Prompt quotation for your inquiry.

More than 10 years experiences in cable and wire field.
