Spring cone crusher

CS Series High-efficiency Spring Cone Crusher from China supplier

1.Introduction

Cone crusher is generally used as a secondary crusher in a crushing circuit. Pre-crushed product (usually 3in minus depending on the cone crusher model) is fed through the top of the cone crusher and flows over the mantle. The vertical cone crusher drives shaft rotates the mantle eccentrically below the concave, or bowl liner, squeezing the product and crushing it between the mantle and concave. Cone crusher are usually run on belt drives driven by an electric motor or diesel engine. Cone crusher are used extensively throughout the aggregate and mineral processing industry.

2 Wroking principle

When the crusher works, motor drives eccentric cover to rotate by flexible coupling, transmitting shaft, and a pair of bevel gears. Crushing cone central line moves cycloidally driven by eccentric cover, so the crushing wall and fragment wall sometimes approach to each other, and sometimes depart from each other. By doing this, materials are crushed between the crushing wall and fragment wall.

3 Main Parameters

Standard CS Series Cone Crusher

4 Main Features

4.1 Good performance, good granule of the products

4.2 Stable , convenient cleaning-up

4.3 Reliable, easy maintenance and operation

4.4 Low production cost

4.5 Widely used

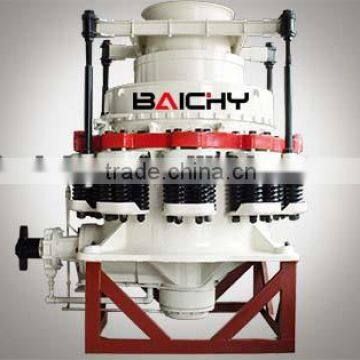

5 Pictures of Machine
