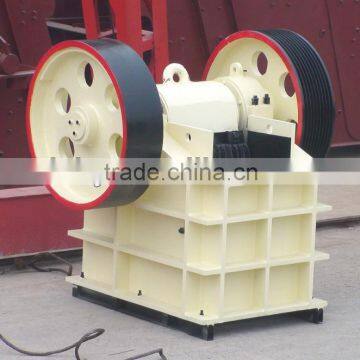

JCE European Type Jaw Crusher Inlegral cast steel structure newly designed From Baichy Equipment Manufactural

Specifications

• European Type Jaw Crusher features:




  1,JCE European Type Jaw Crusher's movable jaw with steel parts, eccentric shaft by forging technology for processing, better stability.


  2,Bearing housing with the overall steel structure, thus breaking the rack completely fit with enhanced radial strength of the bearing seat.


  3,The eccentric shaft bearing specifications greater, higher durability, extended equipment life.


  4,Protect tooth plate length longer than normal, which can effectively increase production.




  European Type Jaw Crusher main structure:




  Frame section:composed of side panels, front box components, weldments after box.


  The eccentric shaft transmission parts:mainly by the movable jaw, eccentric shaft, bearings, housings, pulleys and other components.The main part of the power transmission.




  Working part of the crushing chamber:Mainly composed of fixed jaw plate, movable jaw plate, side panels, guards, etc., are working parts of broken material.


  Safety device:The toggle plate, toggle plate seat, spring, spring rod, etc., is the crusher from the insurance role in abnormal circumstances parts.


  Nesting population adjustment device:The device is used to adjust the size of Nesting population size, controlling the particle size. Mainly by adjustment of the fixed ramp, adjust the sliding ramp, the top wire bolts, slide locking rod etc.
