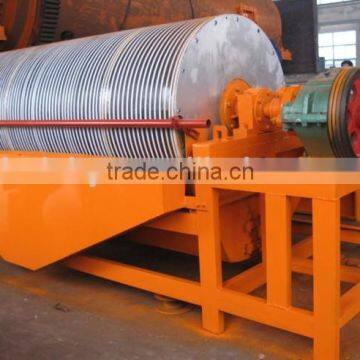

                 New Type Laboratory Magnetic Separator China Supplier

1. Magnetic separator Description:

The  Magnetic Separatoris a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.The can separate the raw materials with different magnetic rigidities.The machine works under the magnetic force and machine force.Our Magnetic Separators are designed to recover ferromagnetic materials. The separators are availablein designs and sizes to provide solutions for all applications.

2. Working principle of magnetic separator:

It mainly consists of magnetic , drum, separation trough, gearing, and feeding , discharging ,and overflowing device. According to the different specific susceptibility, it makes use of magnetic force to separating the various minerals. When the pulp ores enter into separation area, the strong magnetic minerals will be absorbed on the surface of the drum under the force of the magnetic fields, and then be leaded into the Concentrates mouth along the rotary of the drum. As been away of the magnetic system, it will be discharged into concentrated trunk by the water, At the same time, the matrix and the weak magnetic minerals will inflow the tailings discharging mouth against the rotation direction of the cylinder, under the flow of the pulp ore in the tank.

3. Applications of Magnetic Separator:

(1) For primary rough dressing and refused tails, increasing recovery rate and reducing the load of second-stage grinding.
(2) For concentration of ferromagnetic minerals, increasing ore grade and recovery rate.

(3) Used before high-magnetism separation to remove ferromagnetic minerals from the ore and prevent magnetic clogging.
(4) To recovery of heavy media at coal processing plants.

4.Specification of magnetic separator :
