Mining Equipment Coal Rotary Drum Dryer In Zhengzhou

Specifications

          Mining Equipment Coal Rotary Drum Dryer In Zhengzhou

1. Rotary Dryer Introduction:

The rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation.

2. Features of Rotary Dryer:

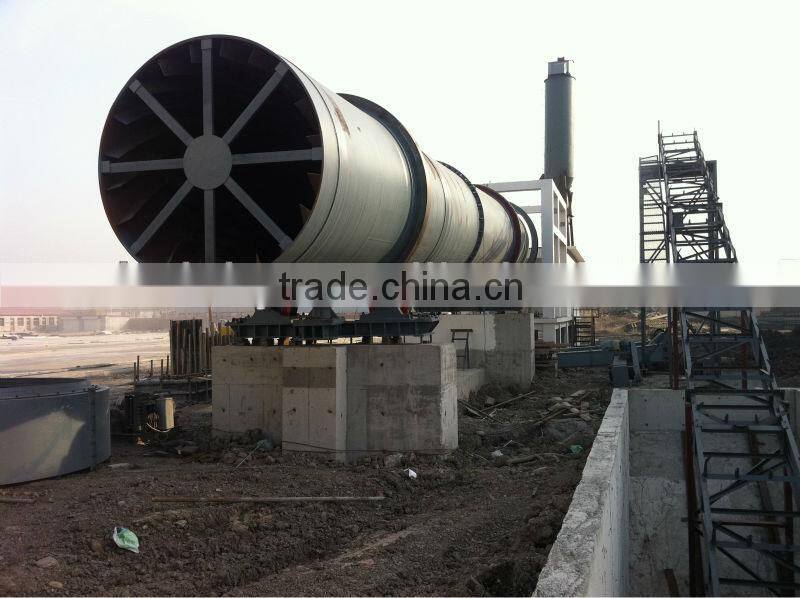

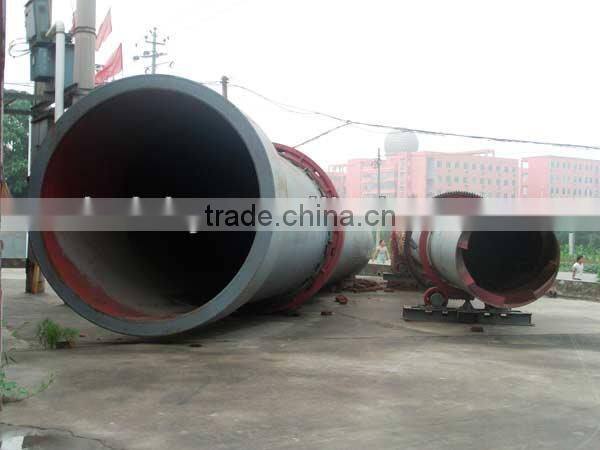

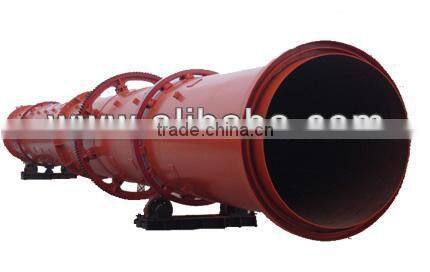

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.

3.Application of Rotary Dryer:

   Rotary dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. Rotary dryer are widely used in building materials,metallurgy, and chemical industry. Rotary dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube,the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.

4.Working Principle of Rotary Dryer:

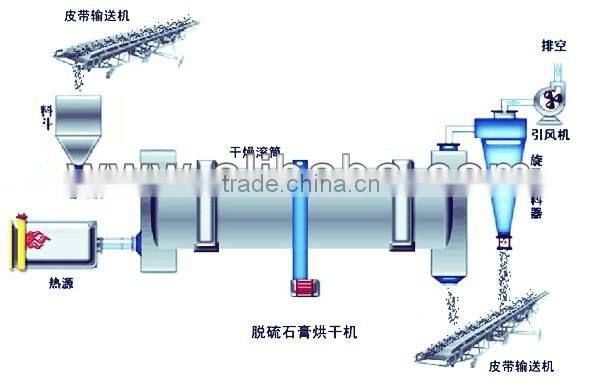

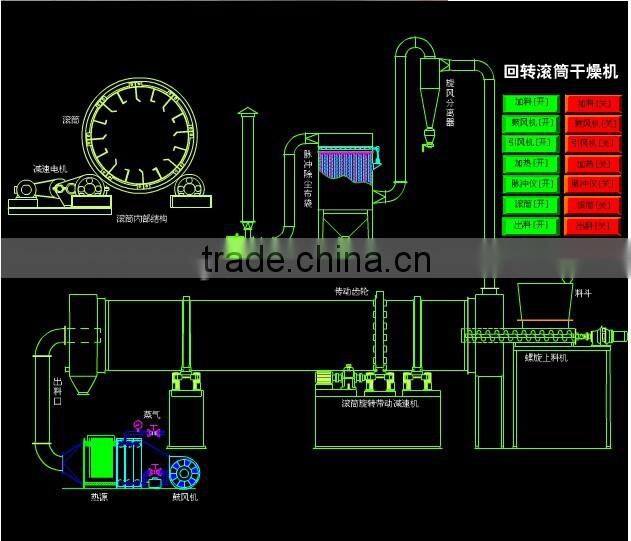

Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.

5. Main technical parameters of the Rotary Dryer:
