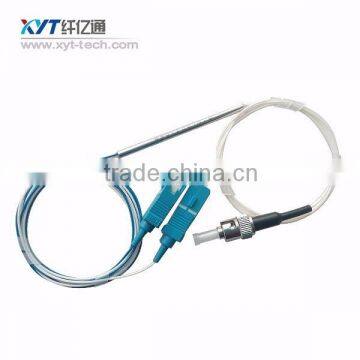

CATV FTTB FTTP high quality steel tube optical coupler
- 20000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
1x8 fiber network plc splitter fc apc plc
-
High Quality 1X4 Optical Splitter fanout splitter for CATV
-
plc 1/16 fiber optic splitter passive optical splitter
-
2*2 single window 1490nm SM abs box optical optic FBT coupler
-
2*2 single window SM fiber optic coupler with LC connector
-
(FTTH, CATV)1X8 Planar Lightwave Circuits Fiber Optical PLC Splitter
Product Details
| Place of Origin | Guangdong, China | Brand Name | XYT | |
| Model Number | XYT-FBT-SM-BL-1*2 |
Product Description
CATV FTTB FTTP high quality plastic box optical coupler for FTTH
Features
Low insertion loss and low PDL
High reliability& High stability
RoHS compliant
Applications
EDFA
CATV Passive network WAN
FTTH
Specification
Parameter | Unit | Value | ||||
Type |
| Dual-Window Coupler(DWC) | Three-Window Coupler(TWC) | |||
Grade |
| P | A | P | A | |
Operating wavelength | nm | 1310 and 1550 | 1310,1490 and 1550 | |||
Operating bandwidth | nm | 1310/1550±40 | 1310/1550±40 and 1490±10 | |||
Insertion loss | 50/50 | dB | ≤3.6 | ≤3.8 | ≤3.6 | ≤3.8 |
| 40/60 | dB | ≤4.7/2.7 | ≤4.9/2.9 | ≤4.7/2.7 | ≤4.9/2.9 |
| 30/70 | dB | ≤6.0/1.9 | ≤6.3/2.1 | ≤6.0/1.9 | ≤6.3/2.1 |
| 20/80 | dB | ≤7.9/1.3 | ≤8.4/1.4 | ≤7.9/1.3 | ≤8.4/1.4 |
| 10/90 | dB | ≤9.20~11.00/0.75 | ≤8.80~11.40/0.8 | ≤9.20~11.00/0.75 | ≤8.80~11.40/0.8 |
| 5/95 | dB | ≤12.05~14.20 /0.4 | ≤11.55~14.65/0.5 | ≤12.05~14.20 /0.4 | ≤11.55~14.65/0.5 |
| 3/97 | dB | ≤14.10~16.50/0.35 | ≤13.60~17.05/0.45 | ≤14.10~16.50/0.35 | ≤13.60~17.05/0.45 |
| 2/98 | dB | ≤15.60~18.55/0.3 | ≤15.00~19.20/0.4 | ≤15.60~18.55/0.3 | ≤15.00~19.20/0.4 |
| 1/99 | dB | ≤18.45~21.70/0.25 | ≤17.80~22.40/0.35 | ≤18.45~21.70/0.25 | ≤17.80~22.40/0.35 |
Polarization Dependent Loss | dB | ≤0.15 | ≤0.2 | ≤0.15 | ≤0.2 | |
Temperature Dependent Loss | dB | ≤0.2 | ||||
Directivity | dB | ≥55 | ||||
|
|
| ||||
Return Loss | dB | ≥55 | ||||
|
|
| ||||
Operating Temperature | ℃ | -40~+85 | ||||
|
|
| ||||
Storage Temperature | ℃ | -40~+8 | ||||
Notes:
1.The above specification is without connectors.
2.Add an additional 0.20dB loss per connector.
Why you choose us?
Firstly,‘High quality is our culture”. All of our products will be specially and carefully tested before delivery to make sure you the our best product. Our product will give you an edge over your competitors.
Secondly, “With us, your buying process will be as easy as a piece of cake.” We are a very professional exporting company.Our staff are very familiar with all kinds of overseas trading terms and custom clearance as well as documents related.
Thirdly,“With us, your money is safe.” Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could opt for your favorite one.
Last but not the least, we have gained Alibaba Trade Insurance which is another safeguard for buyers.
Terms of Payment :
Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could choose your favorite one.
Delivery Time and Shippment:
3-5 workdays,customized products excepted.
Warranty:
All products have 3 years after-sale service During your first year’s usage,
free replacement or repair will be your right unless it is man-made problem.
