Home > Products > CWDM/DWDM SFP Module > single-mode fiber 1310/1490nm Bi-Directional Gigabit fiber optic module

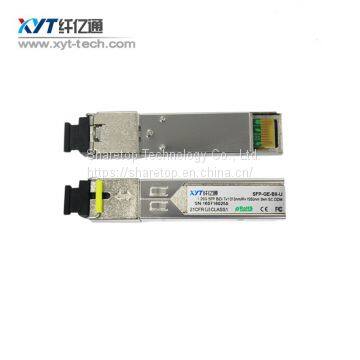

single-mode fiber 1310/1490nm Bi-Directional Gigabit fiber optic module

FOB Price

USD $7.9 - $8.1 / Piece

1 Piece(Min.Order)

Port shenzhen.guangdong
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

XYT

Model Number

XYT-SFP-31-02

Product Description

single-mode fiber 1310/1490nm Bi-Directional Gigabit fiber optic module

Description

The SFP transceivers are high performance, cost effective modules supporting multi-rate of 155Mbps~1.25Gbps and 40km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

1.Operating data rate up to 155Mbps

2.1550nm laser and PIN photodetector for 40 km transmission with SMF

3.PIN photodetector for 100m transmission with SMF

4.Meet SFP MSA and SFF-8472 with LC receptacle

5.Metal Enclosure for Lower EMI

6.Comply with SFP MSA

7.Operation Temperature Range 0~70oC or -40~85oC Optional

8.Single +3.3V Power Supply

9.RoHS-6 Compliant

Applications

1.Gigabit Ethernet

2.Fiber Channel

3.WDM Application

4.Switch to Switch interface

5.Switch backplane applications

6.ATM

7.SONT/SDH/PDH

8.FDDI

9.Other optical transmission syste

Specification

Table 1 - Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1260	1310	1360	nm
Spectral Width (RMS)			λ			4	nm
Average Output Power			Pout	-9		-3	dBm	1
Extinction Ratio			ER	9			dB
Optical Rise/Fall Time (20%~80%)			tr/tf			0.26	ns
Data Input Swing Differential			VIN	400		1800	mV	2
Input Differential Impedance			ZIN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1260		1580	nm
Receiver Sensitivity						-23	dBm	3
Receiver Overload				-3			dBm	3
LOS De-Assert			LOSD			-24	dBm
LOS Assert			LOSA	-35			dBm
LOS Hysteresis				1		4	dB
Data Output Swing Differential			Vout	400		1800	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Ordering information

Part No.	Form Factor	Data Rate	Distance	Wavelength	Connector	DDM
XYT-SFP-31-02	SFP	155M	2km	1310nm	LC	N
