EDFA Application Polarization Insensitive single fiber 3 port optic Circulator
- Shenzhen
- T/T Credit Card
You May Like
-
Communication Equipment 3 ports Fiber optical circulator with SC/APC Connector
-
3 port Fiber Optic Circulator 0.9mm Loose Tube Fiber Optical Circulator
-
3 Port S+C+L(1460-1625)nm Passive Telecom Optical Circulator
-
fiber optic 1310nm 3 ports circulator for fiber bragg grating
-
abs box fiber optical circulator module FC/UPC connector 3 ports 1550nm circulator
-
fiber optic circulator 3 port 1310nm optical circulator
Product Details
| Place of Origin | Guangdong, China | Brand Name | XYT | |
| Model Number | XYT-OCIR-3 |
Product Description

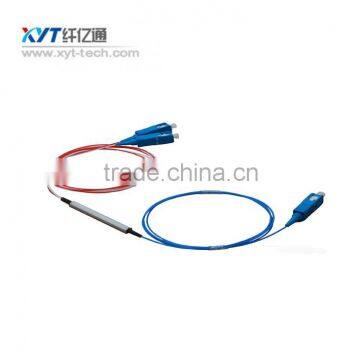

EDFA Application Polarization Insensitive single fiber 3 port optic Circulator
Description
1.The 3 port optical circulator is a compact high performance lightwave component that transmits the incoming signal from port 1 to port 2, while transmitting another incoming signal from port 2 to port 3. The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.
2.It is a special kind of fiber optic components, with single fiber bidirectional transmission function. This function is often combined with optical fiber grating and other reflection components used in DWDM system. Dual`way communication system, the dispersion compensation, EDFA application and OTDR measurement.
Features
1.Low insertion loss
2.Wide band high isolation
3.Low PDL
4.Compact in-line package
5.High stability and reliability
6.Epoxy free optical path
Applications
1.CATV system
2.Telecommunication network system
3.Metro/Access networks
4.Optical amplifier
5.Wavelength add / drop
6.Dispersion compensation
7.Bi-Direction communication
Specification
Parameter | P Grade | A Grade | ||
Configuration | Port 1 to Port2 to Port 3 | |||
Operation Wavelength (nm) | 1470 to 1610 | |||
Insertion Loss (dB) | Typical | 1.0 | 1.1 | |
Maximum | 1.2 | 1.3 | ||
Channel Peak Isolation (dB) | >50@1550nm | |||
Channel Isolation (dB) | >40(1520nm~1580nm);>32(1470nm~1610nm) | |||
Channel Cross Talk (dB) | >50 | |||
Polarization Dependent Loss (dB) | <0.20 | |||
Polarization Mode Dispersion (ps) | <0.1 | |||
Return Loss (dB) | >50 | |||
Power Handling (mW) | 300 | |||
Operating Temperature (°C) | 0 ~ +70 | |||
Storage Temperature (°C) | -40 ~ +85 | |||
Dimensions (mm) | Ø5.5 x L50 | |||
Above specification are for device without connector.
Ordering Information | ||||||
3ports Optical Circulator | Port | Wavlength | Grade | Fiber Type | Fiber Length | In/Out Connector |
3=3 Port | CL=C+L Band 1525~1610nm | P=P Grade A=A Grade
| 1=Bare fiber 2=900um loose tube | 1=1m 2=2m | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify | |
