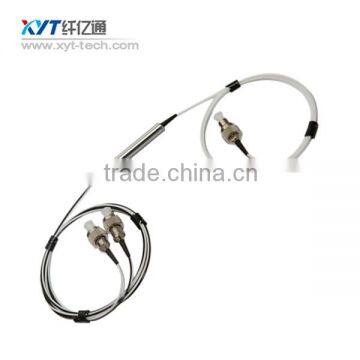

3 port 1310nm Optical Circulator with connector FC/UPC
- shenzhen
- T/T Credit Card
You May Like
-
980nm, 1064nm, 1310nm, 1550nm,1x2 or 2x2 signal mode Fiber Optical Circulator
-
Made in China steel tube fiber optical circulator 3 port
-
3 ports circulator for telecommunication
-
Mini Tube 3 Port 1310nm Optical Circulator 0.9mm tube (casing) with SC APC UPC connector
-
3 port fiber optical circulator 2mm with FC APC UPC Connector optical circulator
-
Good price 3 Port fiber optic circulator
Product Details
| Place of Origin | Guangdong, China | Brand Name | XYT | |
| Model Number | XYT-1002-67 |
Product Description
3 port 1310nm Optical Circulator with connector FC/UPC
Specifications:
1.High isolation and Low insertion loss
2.High return loss and Low polarization sensitivity
3. High stability
4. Good price
Application:
•Optical Fiber Amplifier
•CATV Optical Fiber Link
•Optical Fiber System testing
•Wavelength Add/Drop
•Dispersion Compensation
•Bi-Direction Communication
Optical Circulator Parameter:
Grade | GRADE P | GRADE A | |
Configuration | Port1 to Port 2; Port2 to Port3 | ||
Operation Wavelength(nm) | 1310 | ||
Insertion Loss(dB) | Typical | 0.6 | 0.8 |
Maximum | 0.8 | 1 | |
Channel Max. Isolation(dB) | 50 | ||
Channel Min. Isolation(dB) | 40 | ||
Directivity(dB) | 50 | ||
PDL(dB) | <0.15 | ||
PMD(ps) | <0.1 | ||
RL(dB) | >50 | ||
Bandwidth(nm) | +/-30 | ||
Max. Operating Power(mw) | 300 | ||
Operating Temperature(°C) | 0~70 | ||
Storage Temperature(°C) | -40~85 | ||
Performance Specifications | ||
Parameter | P Grade | |
Configuration | Port 1 to Port 2 to Port 3 | |
Operation Wavelength (nm) | 1310±30 or 1550±30 or 1585±30 | |
Isolation (dB) | Typical | 0.6 |
Maximum | 0.8 | |
Typical Isolation (dB) | ≥50 | |
Minimum Isolation (dB) | ≥40 | |
Cross Talk (dB) | ≥50 | |
Polarization Dependent Loss (dB) | <0.15 | |
Polarization Mode Dispersion | <0.1 | |
Return Loss(dB) | ≥50 | |
Power Handling (mW) | 500 | |
Opterating Temperature (℃) | -10~+75 | |
Package dimension (mm) | Φ5.5xL50 or Φ5.5xL63 | |
Ordering Information | ||||||
| Port | Wavlength | Grade | Fiber Type | Fiber Length | Connector |
3=3 Port | 13=1310nm 15=1550nm 16=1585nm | P=P Grade | 1=Bare fiber 2=900um loose tube 3=3.0mm | 1=1m 2=2m
| 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify | |
| |
| |
| |
| |
