construction rib lath mesh

Shortening the Time (of construction)

ⅠEasy to handle due to the light-weighted subsidiary materials (i.e. 1/10 weight of plywood)
ⅡImprove the work efficiency
ⅢEasy to dismantle
ⅣQuick refilling-up

=============================

Cost Efficiency

ⅠNo skillful hand needed
ⅡCost savings of handling the form dismantling, disused materials and storage management
ⅢEasy to work with
ⅣEasy to bend into round form or right-angled side
ⅤCurved surface

=============================

Minimizing the Space to install

Ⅰ1/20 of plywood in size

ⅡMinimizing the storage space of material at the site

ⅢMinimizing the cost of material handling

=============================

Excellence of Finished-work (plastering and tiling)

ⅠStrengthening the level of adhesion through wire-net of skeleton surface

ⅡPreventing the crack of plastering surface

ⅢNo prime plastering required

=============================

Quality Improvement of Concrete

ⅠEasy to inspect the layout of reinforcing steel and easy to clean
ⅡEnsuring homogeneous concrete strength(upper and lower parts)
ⅢRestraining the surface crack
ⅣEasy to strengthen the connection parts
ⅤImproved earthquake-proof performance

=============================

Reduction of Wasted materials

ⅠNearly none of wastes after construction

ⅡEasy clear and clean the site

=============================

Compatible with existing forms

ⅠPlywood cast

ⅡEuro-Form

of unreliable work

ⅠVisibility of installation

ⅡPreventing the quality deterioration by eliminating the surplus water

Improving the site safety

ⅠEasy of handling with safety through the light-weight
ⅡExcellent work results on the limited work space

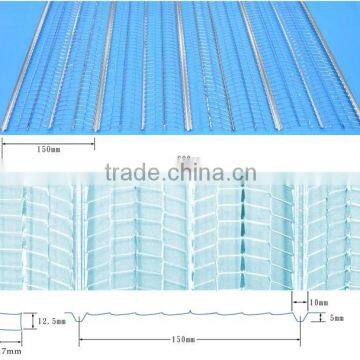

Detailed specifications of the Rib Lath:

Material: galvanized steel sheet
Rib Distance:150mm,     Rib Height:5.0mm,     Opening size(Sw x Lw):12.5x17mm,      Width:600mm

Rib Lath 27”×96”

an integrally ribbed expanded metal lath used for external rendering in sheltered/moderate exposure away from the coast
material:G-60 galvanized steel
packaged:50 pieces per bundles or 500 pieces per pallet
