RP61 Smart Capacitive Pressure Transmitter

Specifications

RP61 smart capacitive pressure transmitter  pressure transducer/ transducer/ ultrasonic transducer/ piezoelectric transducer/ ultrasonic transducer price/ ultrasonic humidifier piezoelectric transducer/ ultrasonic transducer 40khz

Brief introduction:

    RP61 smart pressure transducer is a new product developed by VIRVO Company which combines the modern digital chip technology on basis of metal capacitive transmitter. The signal conversion of sensor uses isolated digital capacitive electro circuit to replace the traditional analog signal amplification electro circuit and A/D converting circuit; besides VIRVO Company make use of digital compensation technique to compensate the temperature and static pressure, thus improving the measurement accuracy, reducing temperature drift. Our transmitter has the advantages of long-term stability, high reliability and strong self-diagnostic capacity. It is mainly used for measuring the absolute pressure and gage pressure. And the RP61 is divided into two kinds: RP61-G for measuring gage pressure and level, and RP61-A for measuring absolute pressure. Both of them adopt the composite silicon sensor.

Features:

1. Outstanding performance:

    High accuracy: ±0.075% of span (±0.04% of span )

    Stability: ±0.01% of span per year

    High Range rate: 100:1

2. Flexibility:

    Setting parameters though HART protocol instruction

    Zero point adjustment

3. Reliability:

    Continuous self-diagnosis function

    Software and hardware failure alarm function

    The EEPROM protect function

    EMC standard (EN50081-2, EN50082-2)

pressure transmitter

Performance Specifications:

pressure transmitter

Electrical Specifications:

pressure transmitter

Physical Specifications:

pressure transmitter

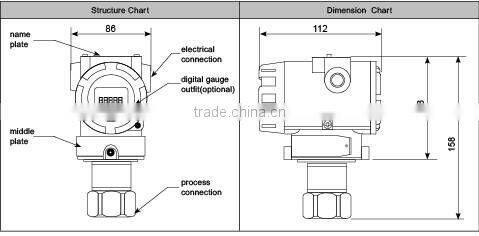

Dimensions: (mm)
