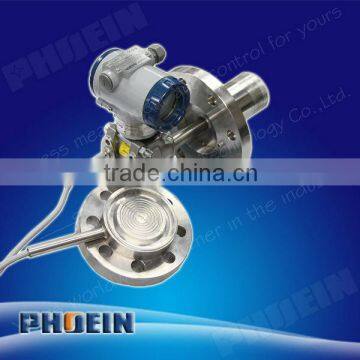

flange mounted differential pressure transmitter

Parameters

Rated temperature

Operating limits

Transportation and storage

Environment temperature(°F)

-104—185

-104—195.8

-131--257

Body temperature(°F)

-104—230

-104—257

-131--257

Humidity(%RH)

10—85

0--100

0--100

Over-pressure capacity

14MPa, 21MPa for specific

Vacuum degree(kPa)

0

3.5

Power voltage

11.9-45 VDC

Signal output

4-20mA DC/HART

HART load resistance

250-1500Ω

Insulation voltage

500 Vrms(707VDC)

Damping time

0.25 S

Starting time

5 S

Material of process connection

Process isolated diaphragm: 316L SS, HastelloyC-276,Monel alloy, Tantalum.

Process joint:Teflon,Viton

Exhaust/drain valve: 316L SS, HastelloyC-276

Bolt: carbon steel, A286 SS (NACE)

Note: The anti-corrosion materials for liquid contacting parts are optional. Please contact with us.

Liquid filled in

Silicone oil DC200, Silicone oil DC704 or CTFE

Shell

Epoxy polyester paint, copper-aluminum alloy. Stainless steel material is optional, meet the standard of NEMA 4X and NEMA7.

Process connection

1/4 NPT, 1/2NPT adapter(optional)

Wiring

16AWG (1.5mm diameter)

Weight

4.2kg,(about 5kg with attachments)

Dimension of package

234×185×155mm

Name plate

304 stainless steel

Accuracy

±0.075% of Span(0.2URL≤Span≤URL)

Stability

±0.01% full scale/ per year

Temperature factor

±(0.025%URL+0.125%Span)/28

Vibration factor

In the case of 200Hz of any axle, the error is ±0.05%/g of the max scale

CE Certification

89/336/EEC, meet the standard of EMC

Num

Measuring range

G

A

D

H

3

0-0.2-7.0kPa(0-20-715mmH2O)

♥

♥

♥

♥

4

0-0.4-37.4kPa(0-38-3810 mmH2O)

♥

♥

♥

♥

5

0-1.8-186.8 kPa(0-190-19050 mmH2O)

♥

♥

♥

♥

6

0-6.9-690 kPa(0-0.07-7kgf/ cm²)

♥

♥

♥

♥

7

0-20.6-2068kPa(0-0.21-21 kgf/cm² )

♥

♥

♥

♥

8

0-68.9-6890kPa(0-0.7-70 kgf/ cm² )

♥

♥

♥

♦

9

0-206.8-20680 kPa(0-2.1--210 kgf/ cm² )

♥

♦

♦

♦

0

0-413.7-41370kPa(0-4.22-422kgf/ cm² )

♥

♦

♦

♦
