Home > Products > Packer and Unpacker > Auto Packer Machine Rotary Pick and Place Packer for High Capacity Line (HZZX144)

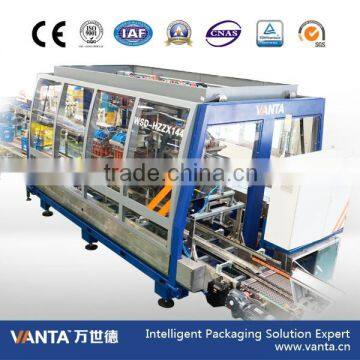

Auto Packer Machine Rotary Pick and Place Packer for High Capacity Line (HZZX144)
Negotiable
/ Set
1 Set(Min. Order)
- Huangpu
- T/T
You May Like
-
High Level Auto Empty Can Depalletizer (XGD300)
-
Highly Automatic Empty Bottle Depalletizer (XPD500)
-
High Speed Empty Bulk Bottle Depalletizer XPD400
-
Glass Bottle Depalletizer Depalletizing Machine XPD300
-
Automatic Low Level Empty Can Depalletizer (XPD200)
-
Beer Case Depalletizer Machine Depalletizing Machine(XXD70)
Product Details
| Condition | New | Application | Beverage, Chemical, Medical | |
| Packaging Type | Bottles, Cans | Packaging Material | Glass, Metal, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V | Power | 6KW | |
| Place of Origin | Guangdong, China | Brand Name | VANTA | |
| Model Number | HZZX144 | Dimension(L*W*H) | 4855x2610x2360 | |
| Weight | 6T | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Machine Video
http://youtu.be/k-5BNxRLt-Q
Product information
1. Description:
Rotary pick and packer is suitable for high capacity production line in water, beer and milk industry etc. The machine gripper picks up the bottle by one side and rotary to put it into the container on the other side. It can meet a variety of different container sizes, including PET bottles, glass bottles, round bottles, oval bottles, square bottles, cans, and other bottles, and extensively used in packaging production line of beer, beverage and foodstuff industry.
2. Equipment datasheet
2. Equipment datasheet
| Model | HZZX144 |
| Capacity(BPH) | 57000 BPH (80CPM) |
| Application | Beer, water, milk, seasoning etc. |
| Bottle material | glass, PET, metal |
| Bottle shape | around, square, oval |
| Bottle size(mm) | Ø62~85mm (different pick heads need according to different bottle) H180~300mm |
| Case size (max.) | Length: 200-530mm Width: 200-350mm Height: 190-310mm |
| Equipment dimension | 4855×2610×2360 (L x W x H, mm) |
| Power consumption | 6Kw |
| compressed air | (a)pressure: 0.6MPa (b)consumption: 250NL/min |
| Main Power supply | 3P AC380V 50/60Hz |
| Auxiliary power supply | AC220V; DC24V |
| Equipment weight | 6T |
| Equipment noise level | ≤85 dB(A) |
3. Competitive Advantage:
3.1 A lower investment cost.
3.2 Faster return on investment.
3.3 High-quality and advanced device configuration, use the international generic accessories.
3.4 Reliable main drive gear and synchronous bottle blocking, bottle grabbing and bottle guiding system.
3.5 Reliable bottle input, bottle counseling, synchronous bottle transporting, sub-bottle system.
3.6 Expand production, reduce material waste and improve yield.
3.7 Equipment with flexible application and easy to operate.
3.8 Synchronous adjustment, easy change-over, and time-saving.
3.9 User-friendly interface.
4. Packing Product:
