Variable Frequency Speed Control Rotary Evaporator
- Shanghai tianjin dalian
- T/T Credit Card
You May Like
-
3L ~ 50L PTFE Sealing Rotary Vacuum Evaporator In Distillation
-
Large Evaporation Capacity Vacuum Rotary Evaporator
-
Automatic Lift Industrial Rotary Evaporator With Water Bath
-
Capacity 0.5-50L Rotary Electric Film Evaporator
-
R Series Rotary Evaporator PTFE Sealing
-
GB/T&ISO Certificate Rotary Vacuum Evaporator
Product Details
| Condition | New | Application | Distillation | |
| Power Source | Electric | Process | Rotary | |
| Place of Origin | Henan, China | Brand Name | Zhengzhou Great Wall | |
| Model Number | R Series | Voltage | 220V/ 380V | |
| Power(W) | 2.2KW ~ 8.3KW | Certification | ISO 9001: 2008 Certificate | |
| Warranty | one year |
Product Description
Specifications
variable frequency speed control rotary evaporator1.digital display temp&speed
2.PTFE seal
3.GB/T&ISO
4.electric elevation
variable frequency speed control rotary evaporator
I. Brief introduction of rotary evaporator:
Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.
II. Features of rotary evaporator:
1. Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.
2. the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.
3. a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.
4. water bath electric lift and manual lift support, easy to use.
5. PTEE discharge valve, corrosion resistance, pollution-free.
III. Rotary evaporator-Vacuum-Low temperature system:
♦20L,30L,50L middle and large type of rotary evaporator.
♦SHB-E big swept volume water circulating vacuum pump.
♦DLSB-30/30, 30/40, or DL-3000, DL-5000 of low temperature system.
Can provide the best solution for evaporate purified.
IV. Technical data:
Model | R-1005 | R-1010 | R-1020 | R-1050 | |||
Rotary Bottle | 5L,diameter of flange opening: Φ50mm | 10L,diameter of flange opening:Φ95mm | 20L, diameter of flange opening:Φ95mm | 50L,diameter of flange opening:Φ125mm | |||
Collecting bottle | 3L | 5L | 10L | 20L | |||
Speed-regulationj ofmain machine | Digitaldisplay,vayiable frequency,stepless Speed-regulation | ||||||
Rotary speed of mainMachine | 10to140r/min,digitaldisplay of rotary speed | 10to130r/min,digitaldisplay of rotary speed | 10to130r/min,digitaldisplay of rotary speed | 10to110r/min,digitaldisplay of rotary speed | |||
Rotaring motor (W) | phase AD induction motor,power:40W | phase AD induction motor,power:90W | phase AD induction motor,power:120W | phase AD induction motor,power:120W | |||
Condensing tube | Vertical type water refrigerating | Standing,main+auxiliary cooling and highly effcient3 circulating coldtrap | |||||
Heating boiler | stainless water bath | ||||||
Temperature control | Digital display,temperature control,0~99°C | ||||||
Achievable vacuum | 399.9Pa (below 3mmHg) | ||||||
Evaporating capability | Water≥2L/h Alcohol≥6.5L/h | Water≥3.2L/h Alcohol≥6.5L/h | Water≥5L/h Alcohol≥11L/h | Water≥9L/h Alcohol≥19L/h | |||
Elevating function | Electric elevation | Electric elevation | Electric elevation | Electric plus manual lifting | |||
Elevating stroke | 0~150mm | 0~160mm | 0~190mm | 0~230mm | |||
Rated power supply | 220V/50Hz | 380V/50Hz | |||||
Power of power supply | 2.2KW | 4.8KW | 6.3KW | 8.3KW | |||
Dimensions (mm) | 765L*400W*1070H | 920L*550W*1700H | 1250L*600W*2100H | 1320L*770W*2340H | |||
V. Recommended whole system (cooler + rotary evaporator + vacuum pump):
DLSB series cooler + R-1020 Rotary evaporator + SHB-B95 Water circulating vacuum pump

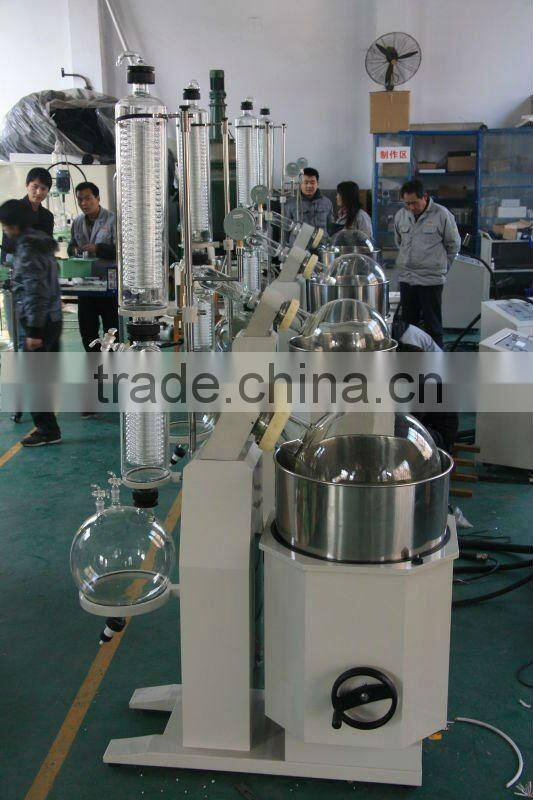

VI. Workshop of Large Rotary Evaporators:
VII. Fairs:
