Home > Products > Low-temperature Cooling Liquid Circulating Pump > DLSB Low Temperature Pump Used for Rotary Evaporator
DLSB Low Temperature Pump Used for Rotary Evaporator
- Shanghai
- T/T Credit Card
You May Like
-
Biological Experiments DLSB 5L/20 Low-temperature Cooling Liquid Circulating Pump
-
Laboratory Refrigeration Equipm Low-temperature Cooling Liquid Circulating Pump
-
Large Precise Instruments Low-temperature Cooling Liquid Circulating Pump
-
DLSB Cooling Water Chiller Bath 9-1300L Temp 10-25
-
DLSB Refrigerated Circulator Refrigeration Pump Lowest Temperature -20C
-
DLSB Refrigerated Circulator -80C
Product Details
| Brand Name | Zhengzhou Great Wall | Model Number | DLSB-5/20 | |
| Place of Origin | Henan, China |
Product Description

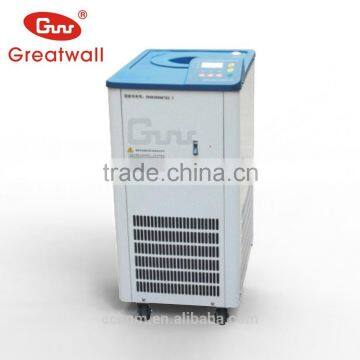

DLSB low temperature pump used for rotary evaporator
I. Brief description of low temperature pump:
Adoption of low-temperature liquid circulation equipment of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Multi-purpose Circulating Water Vacuum Pump.
II. Features of low temperature pump:
1.Large-capacity open bath combined with outside loop can not only be used as freezing tanks, but also provide cooling fluid outside.
2.Digital setting and display of temperature, easy to operate.
3.Refrigeration compressors and other key parts adopt products with famous brands of the United States, Germany, and France and have high reliability and efficiency.
4.Circulating system adapts ANSI304, 316 and macromole anti corrosion substance, which can prevent rust, corrosion, and low temperature liquid pollution.
III. Technical data:
Model | DLSB-5/20 | |
Temperature range (°C) | -20~Room temp | |
Temperature stability (°C) | ±2 | |
Cooling capacity (W) | 10 °C | 1150 |
0 °C | 880 | |
-10 °C | 600 | |
-20 °C | 320 | |
Flow (L/min) | 12 | |
Lift (m) | 5~7 | |
Bath volume (L) | 5 | |
Bath opening (mm) | Φ210*180 | |
Ambient temperature (°C) | 5~25 | |
Power supply (V/Hz) | 220/50 | |
Overall power (W) | 600 | |
Materials of machine casing | SPCC steel with powder coating | |
Dimensions (mm) | 465L*325W*730H | |
Weight (kg) | 41 | |

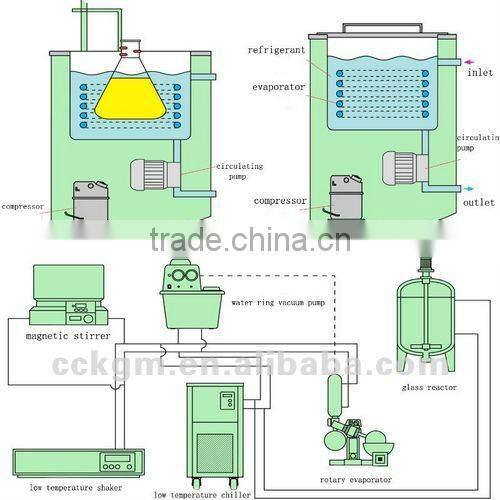

IV. Pictures of uses:
V. Used for rotary evaporator:
VI. About our company:
