ZT-20-200-80 Hermetic Refrigeration and Heating Circulators Used With 20L Reactor

Specifications

   ZT-20-200-80 Hermetic Refrigeration and Heating Circulators Used with 20L Reactor

Introduction of  hermetic refrigeraitng and heating circulator:

    Circulating device which provides cold source and heat source has wide working range, and can be used in many industries such as pharmacy, chemical industry and biology. It provides cold source and heat source for reaction kettle and groove, etc and can be used in heating and cooling for other equipments.

CHARACTERISTICS OF USES:

       1. It is divided into three systems: refrigerating system, heating system, precooling system. Three systems can be used continuously and also can be used seperately.

       2.  Heating and cooling quickly, and temperature can be increased and lowered continuously.

       3. The temperature control range is wide, no need of changing heat-conducting medium in the whole course and the consumption of heat-conducting medium is little.

       4. The complete closed circulating system is not easy for the heat transfer fluid to volatilize and oxidize at high temperature, or to absorb moisture in the air at low temperature, which can make the service life of heat transfer fluid longer.

       5. High temperature cooling and refrigeration function can lower from high temperature level directly(e.g.: can lower temperature from 200°Cdirectly).

       6. Refrigeration heat exchanger adopts complete brazing type, whose occupied space is small and the efficiency of heat exchanging is high.

       7. Liquid level display function can monitor the liquid level at any time to avoid lacking of liquid.

       8. Multiple protection functions including high temperature cut off, scram, timedelay, creepage, overcurrent, over heating can fully ensure the safety in use.

       9. The way of condenser and pre-cooling is air-cooling, saving the water resources

Technical data:

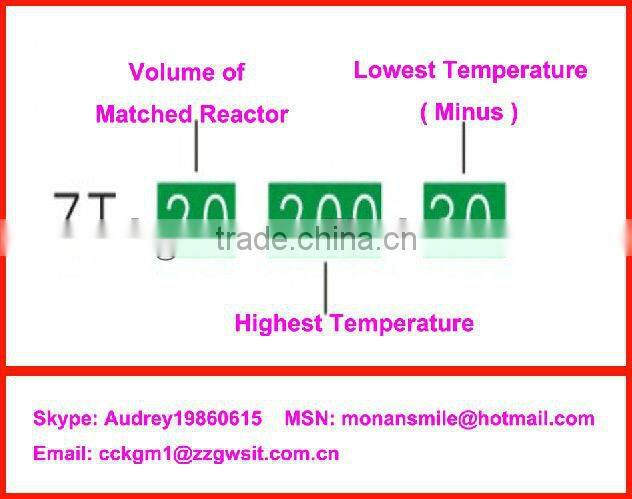

Model Explaination:

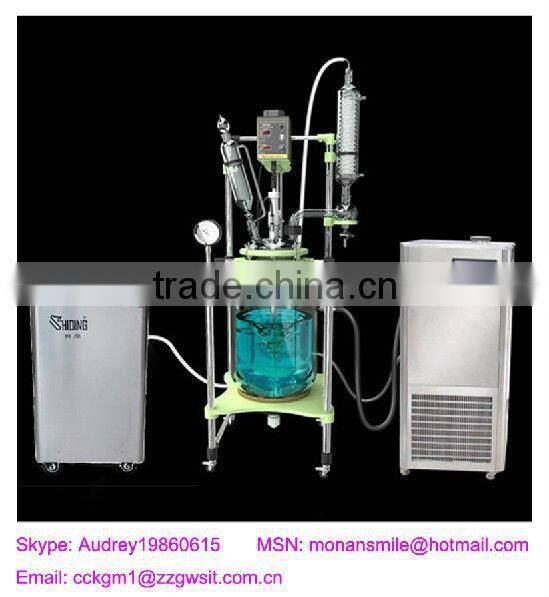

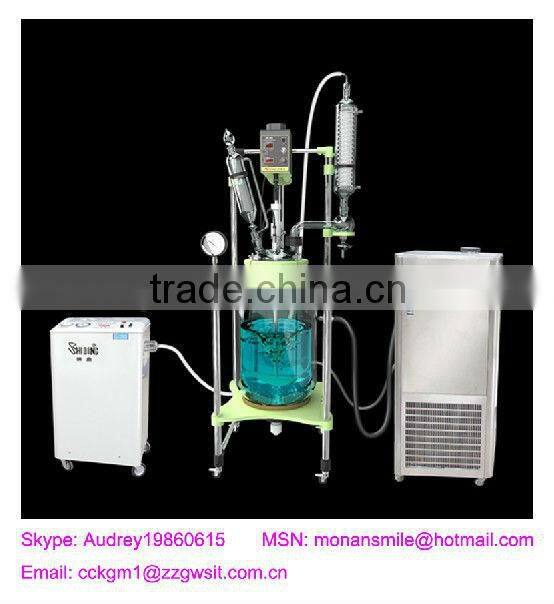

Recommended Total System:

Common Circulating Water Jet Flow Vacuum Pump SHB-B95/SHB-B95A + Glass Reactor GR-50L + Hermetic Refrigerated and Heating Circulators ZT Series

Common Circulating Water Jet Flow Vacuum Pump SHB-B95/SHB-B95A + Glass Reactor GR-50L + Hermetic Refrigerated and Heating Circulators ZT Series

Classification of ZT Series:

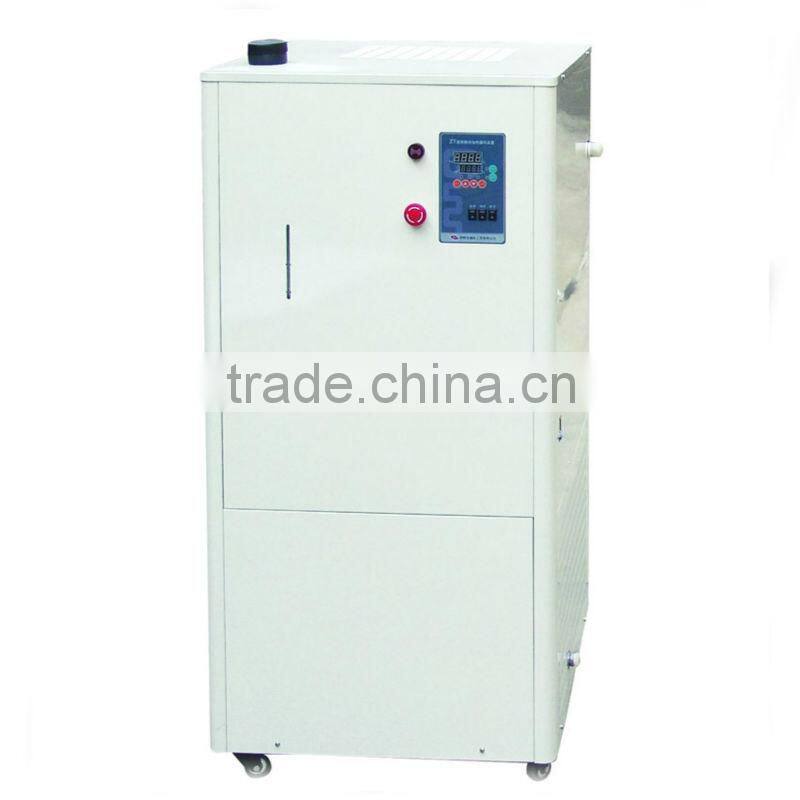

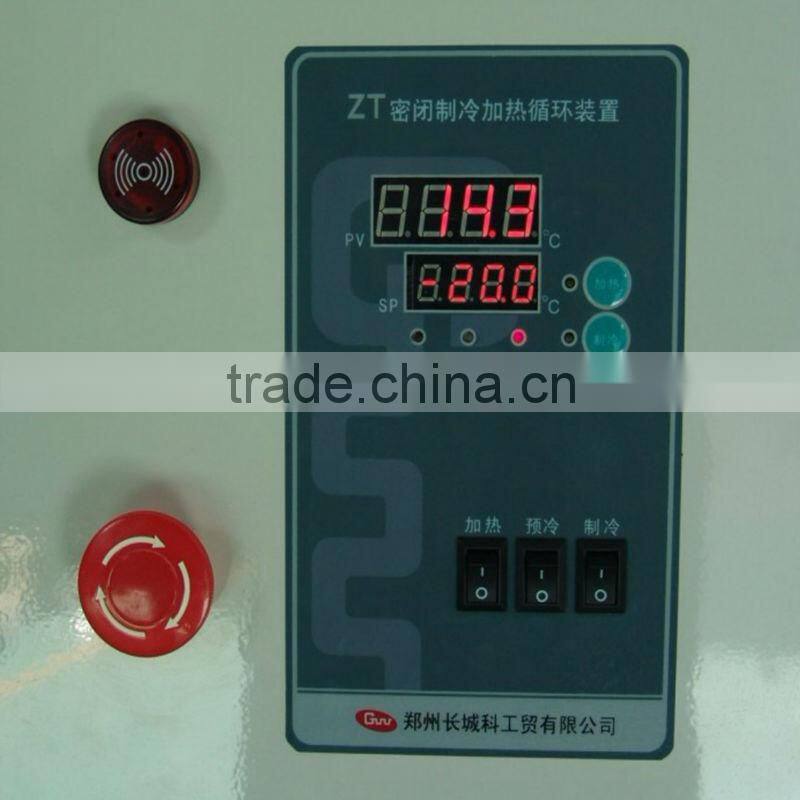

Economical Type: Manual operation; Highlight brightness LED display; Extraordinary high temperature protection function; PID temperature control technology.

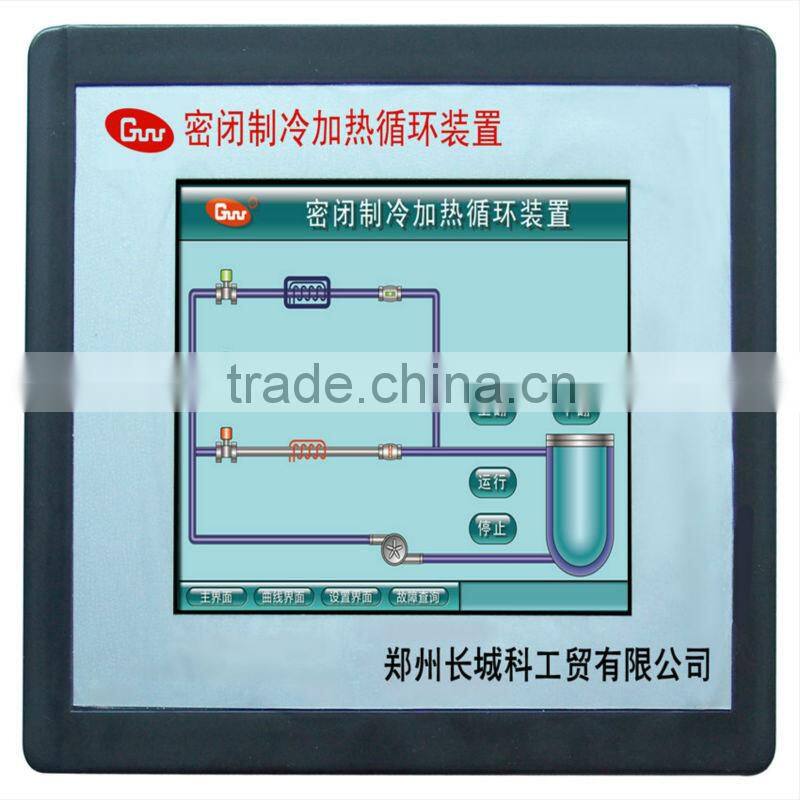

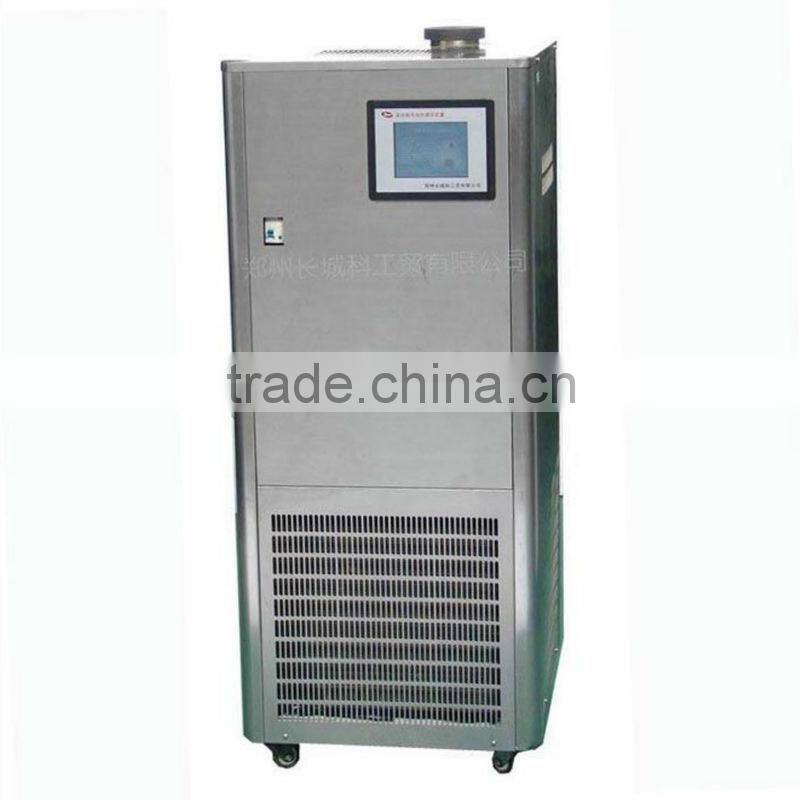

Standard Type: Touch screen, Automatic control, easy operation; PLC program human machine interface; 10 temperature control programs; Can messure the temperature inside the kettle body; Extraordinary high temperature protection function.

ISO 9001:2008 Certificate:

Workshop:

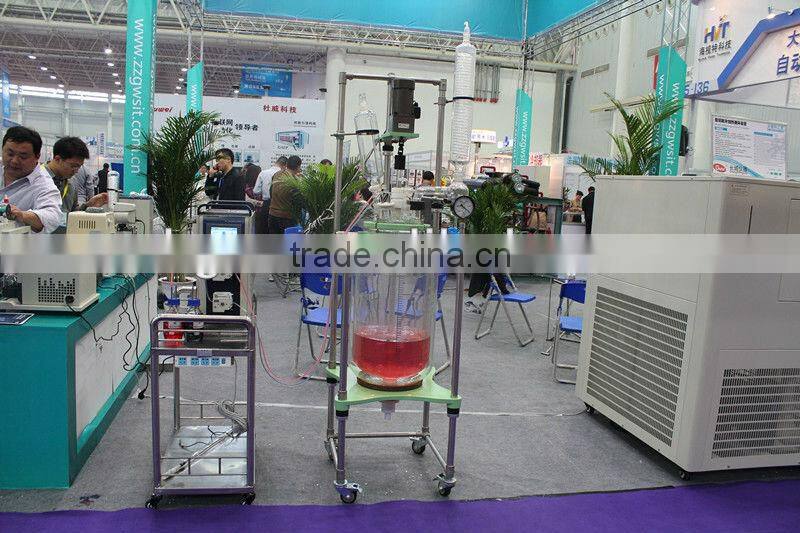

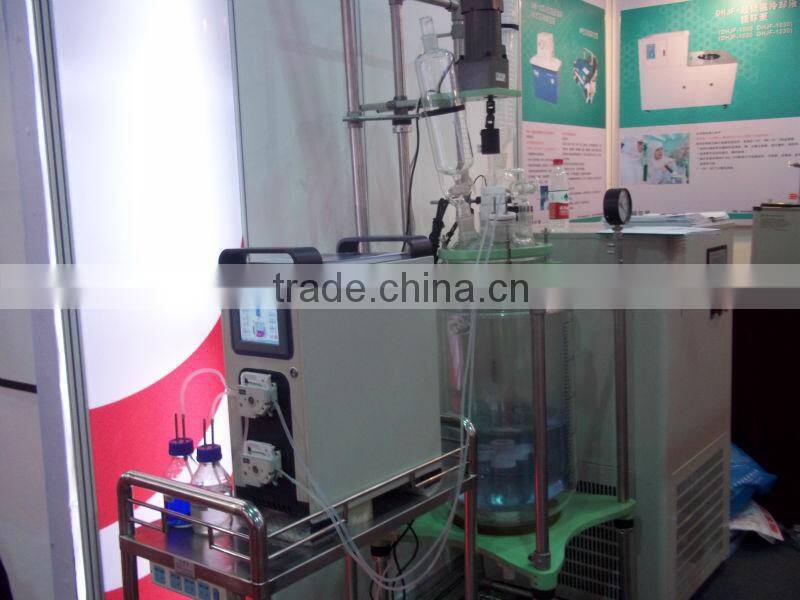

Fairs:
