6.5l Heating Magnetic Blenders
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
6.5l Heating Magnetic Blenders HWCL-5
-
Chinese Professinal Manufacturer Supply HWCL-5 Magnetic Blender
-
Chemical Instrument HWCL-5 Magnetic Blender
-
Zhengzhou Greatwall HWCL-5 Heating Magnetic Blenders
-
Chinese Professinal Manufacturer Supply HWCL-5 Heating Magnetic Blenders
-
Chemical Instrument Supply HWCL-5 Heating Magnetic Blenders
Product Details
| Brand Name | Zhengzhou Greatwall | Model Number | HWCL-5 | |
| Place of Origin | Henan, China |
Product Description
Specifications
I Strong magnetic stirringII PID control
III Adopt SUS304 stainless steel heater
IV Dual sensor
I Brief introduction of the HWCL series heating magnetic blenders :
Can be used as water bath and also can be used as oil bath. Strong magnetic stirring is set in trough solid.
II Main features of the HWCL series heating magnetic blenders :
♦ Adopt ANSI 304 stainless steel heater which can be used for oil and water bath.
♦ Strong magnetic stirring makes the stirrings in the flume rotate synchronistically to ensure the even and precision of high viscosity solution temperature.
♦ The performance of high performance direct current brushless machine is stable and can be used continuously.
♦ High temperature magnet will not lose magnetism when continuous use in 300°C.
♦ PID control, digital display
♦ Dual sensor, temperature can be converted and displayed in flume and reaction vessel.
III Technical data of the HWCL series heating magnetic blenders :
Model | HWCL-1 | HWCL-3 | HWCL-5 |
Temperature range(°C) | Room temp ~200 | ||
Temperature stability (°C) | ±1 | ||
Temperature display | Keypad input Digital display | ||
Speed-setting | Knob setting | ||
Speed (rpm) | 0~2000 | ||
Bath size(mm) | 140×90 | 220×110 | 250×140 |
Bath volume(L) | 1 | 4 | 6.5 |
Heater wattage (W) | 300 | 1500 | 1500 |
The max flask input (ml) | 500 | 3000 | 5000 |
Power Supply(V/Hz) | 220/50 | ||
Dimensions (mm) | 190L×200W×190H | 260L×280W×230H | 260L×280W×260H |
IV: Pictures of the heating Magnetic blenders:

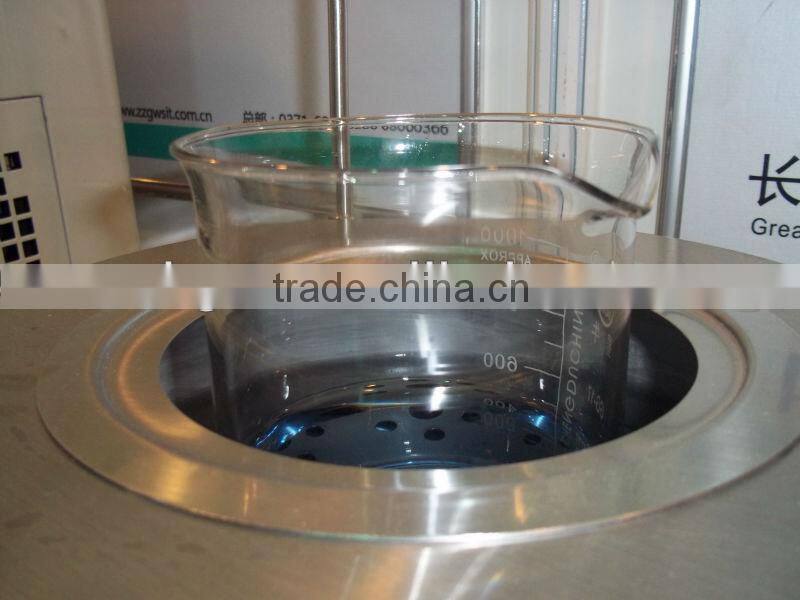

Working pictures:
The cap of the stirrer :
ISO 9001 CERTIFICATE :
IV: Operation Principle of HWCL-5 Integrated Thermostatic Magnetic Blenders
Magnetic blenders control panel :
Exhibition:
