Product Details
| Brand Name | SCVE | Model Number | SF92-M | |
| Type | Other, Tubular Motor | Frequency | 50Hz | |
| Output Power | 580W-910W | Protect Feature | Other, Explosion-proof, Enclosed | |
| Certification | CCC, CE, ROHS, UL | |||
| AC Voltage | 208-230 / 240 V | Place of Origin | Zhejiang, China | |
| Efficiency | IE 4 |
Product Description
Specifications
tubular motor for roller shutter door1:mechanic limit, With manually
2:place of orgin Zhejiang
3:Brand SCVE
4: best price
2:place of orgin Zhejiang China
3:Brand Name SCVE
About SF92-M Series:

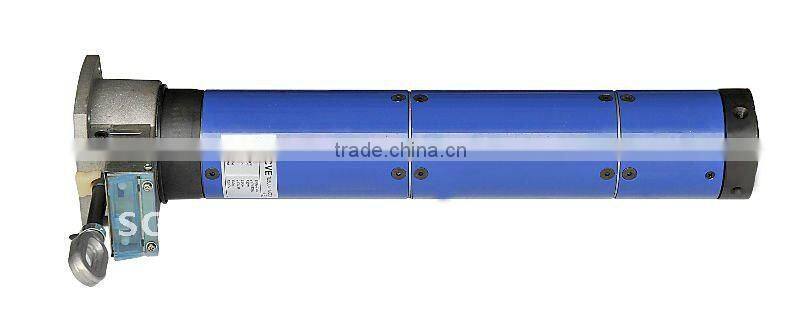

SF92-M Electrical Tubular motor (tubular motor for roller shutter, tubular motor for awnings, ac tubular motor) are designed by international advanced technology, with merits of Safe, Compact, Vogue and Effective, adopt side-magnetic brake system. The output torque is from 140N.m to 300N.m. They are widely used for large garage doors for airplane, roller shutters etc.
New designed limit head,adapted for more modes of installation. Mechanical limit switch, with accurate limit position.
Easy installation and smooth running,DB level below 42dB.
Compatible with SF control system.More secure and stable.
Manual override make it possible to operate normally in case of power failure.

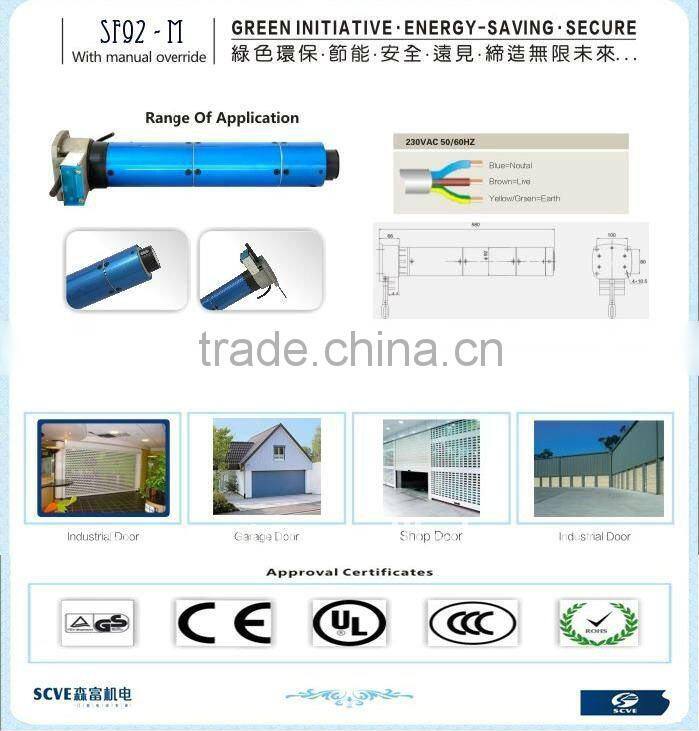

SF92-M Characteristics:
Model | Torque
(N.m) | Rotating
(rpm) | Rated Voltage (V) | Rated Frequency (Hz) | Rated Power (W) | Rated Current (A) | Running Time (min) | Net Weight (Kg) |
SF92-140M | 140 | 12 | 230 | 50 | 580 | 2.6 | ≥4 | 13.50 |
SF92-180M | 180 | 12 | 230 | 50 | 626 | 2.8 | ≥4 | 13.50 |
SF92-230M | 230 | 12 | 230 | 50 | 830 | 3.6 | ≥4 | 13.50 |
SF92-250M | 250 | 8 | 230 | 50 | 850 | 3.7 | ≥4 | 14.60 |
SF92-280M | 280 | 8 | 230 | 50 | 860 | 3.75 | ≥4 | 14.60 |
SF92-300M | 300 | 8 | 230 | 50 | 880 | 3.8 | ≥4 | 14.60 |
SF92-330M | 330 | 8 | 230 | 50 | 910 | 4.0 | ≥4 | 14.60 |
