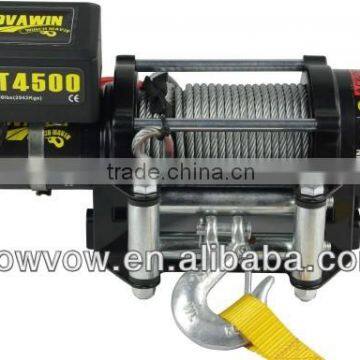

Versatile electrical winch with control box NVT4500(4500lbs)
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | NOVAWIN | |
| Model Number | NVT4500 | Power Source | Electric | |
| Application | ATV/UTV | Capacity | 4500lbs(2043kgs) |
Product Description
Specifications
2014 portable electrical winch with control box1.4500lbs(2043kgs)single line.
2.DC12V
3.High Quality.
4.Reasonable price
Versatile electrical winch with control box NVT4500(4500lbs)
PERFORMANCE SPECIFICATIONS
Single line rated pull: | 4500lb (2043kg) |
Motor(permanent magnet): | DC 12V 1.3HP/1KW |
Gear train: | 3-stage planetary gear |
Gear ratio: | 180:1 |
Clutch: | Sliding ring gear |
Braking action: | Automatic in the drum |
Fairlead: | 4-way roller fairlead |
Overall dimensions: | 15.1"x4.53"x4.76"(386mm x113mm x121mm) |
Drum size: | 1.73"x4.86"(44mm x 123.5mm) |
Wire rope: | 7/32"x55.7'(5.4mm x 17m) |
| Bolt pattem: | 6.6"x3"(168mm x 76.2mm) |
Net weight: | 30.6lbs(13.9kgs) |
Line speed and motor current (first layer)
| Line pull(lbs/kgs) | Line speed(FPM/MPM) | Motor current(AMPS) |
| 0/0 | 13.1/4.0 | 30.0 |
| 1500/680 | 9.8/3.0 | 75.0 |
| 2500/1135 | 8.2/2.5 | 105.0 |
| 3500/1589 | 6.6/2.0 | 135.0 |
| 4500/2043 | 4.3/1.3 | 185.0 |
Line pull and cable capacity
| Layer of cable | Rated line pull per layer(lbs/kgs) | Cable capacity per layer(ft/m) |
| 1 | 4500/2043 | 11.5/3.5 |
| 2 | 3691/1676 | 25.6/7.8 |
| 3 | 3129/1421 | 42.3/12.9 |
| 4 | 2715/1233 | 55.8/17 |
Take a walk around our production workshops for NVT4500
Parts processing equipment
6 Professional production line
DynamicStatic Test Center
well managed warehouse
Have taken part in many exhibitions since 2007
Domestic and international patent and citifications
