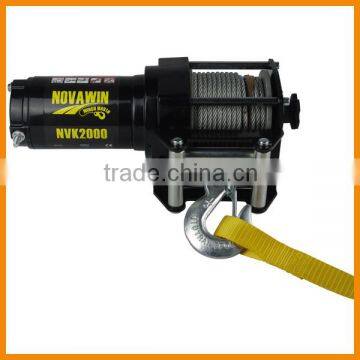

Simplest construction Winch NVK2000(2000lbs)

FOB Price

Negotiable / Piece

20 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Simplest construction Winch NVK2000
1. 2000lbs(907kg) single line
2.DC12V
3.Excellent Quality.
4.Reasonable Price

Simplest construction Winch NVK2000(2000lbs)

NVK2000 SPECS
Rated line pull: 2000lbs(907kgs)single line
Motor(permanent magnet): DC 12V:Input 2.4hp/1.8kW, Output 1hp/0.75kW
Gear train: 1 stage planetary
Gear ratio: 153:1
Clutch: free spool knob
Braking action: Dynamic brake
Fairlead: 4-way roller fairlead
Wire rope: 5/32"×49'(4mm×15m)
Drum size: 1.24"×2.88"(31.5mm×73mm)
Dimensions: 11.4"×3.94"×4.25"(290mm×100mm×108mm)
Bolt pattern: 3.13"(79.5mm)
Net Weight: 19.5lbs(8.8kgs)

Line speed and motor current (first layer)
Line pull (Lbs/Kgs)	Line speed (FPM/MPM)	Motor current(Amps)
0 / 0	10.5 / 3.2	14
500 / 227	19.2 / 2.8	30
1000 / 454	7.5 / 2.3	60
1500 / 680	5.9 / 1.8	90
2000 / 907	3.3 / 1.0	120

Line pull and cable capacity
Layer of cable	Rated line pull per layer (Lbs/Kgs)	Cable capacity per layer(Ft/M)

1	2000 / 907	6.5 / 2.0
2	1630 / 739	14.0 / 4.3
3	1380 / 626	22.0 / 6.8
4	1190 / 540	31.0 / 9.5
5	1050 / 476	41.0 / 12.5
6	640 / 426	49.0 / 15.0

Take a walk around our production workshops for NVK2000

50,000 square meters factory

Parts processing equipment

6 Professional production line

DynamicStatic Test Center

well managed warehouse
