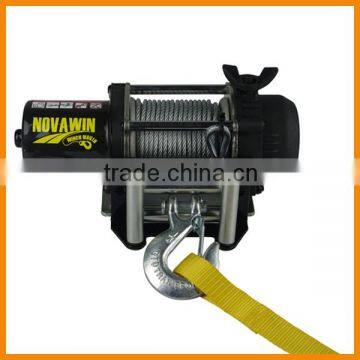

Solenoid electrical winch NVT1700(1500lbs)
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | NOVAWIN | |
| Model Number | NVT1700 | Power Source | Electric | |
| Application | ATV/UTV | Capacity | 1500lbs(772kgs) |
Product Description
Specifications
Solenoid electrical winch NVT1700(1500lbs)1.1500lbs(772kgs)single line.
2.DC12V
3.High Quality.
4.Reasonable Price.
Solenoid electrical winch NVT1700(1500lbs)
SP2000 winch is ideal tool for ATV/UTV snow plow in extremely cold season. It creates history in Canada, which lifting load up to 3000 cycles without any slip. The powerful 12 DC volt motor provide reliable and durable work force. It is the best snow plow winch that end users would expect in winter.
* Easy operated free spool knob.
* Though material protect gear assembly from abrasion and wear.
* Circuit breaker protect winch from over-current.
* Galvanized air-craft wire rope guarantees minimum breaking strength.
* You get really single line pull capacity.
* Compact dimension suites almost all models of ATV/UTV.
SPECIATION:
| Rated line pull | 1500lbs(772kg) |
| Motor(permanent magnet) | 0.58HP/0.43KW(DC12V) |
| Gear ratio | 103:1 |
| Clutch | free spool knob |
| Break | Dynamic break |
| Overall dimensions | 11.4"(L)X4.33"(W)X4.25"(H) |
| Drum size | 1.5"(D)x2.9"(L) |
| wire rope | 5/32"(L)X49"(W) 4mm(L)X15m(W) |
| Bolt pattern | 4.9"X3"(124)X76mm) |
| Net Weight | 120.2 lbs(9.2kgs) |
Take a walk around our production workshops for NVT1700
Parts processing equipment
6 Professional production line
DynamicStatic Test Center
Well managed warehouse
Have taken part in many exhibitions since 2007
Domestic and international patent and citifications
