Product Description

Specifications

1.Concrete batching machine
2.Reasonable structure
3.Easy operation
4.ISO9001:2000

High Output Concrete Batching Plant Low Price

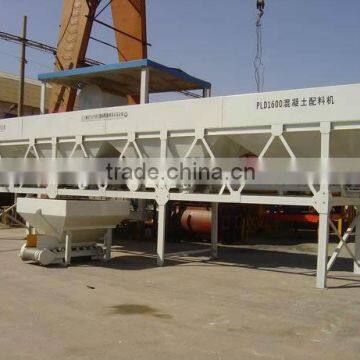

1. Introduction of concrete batching machine:

Concrete batching machine is a kind of front-desk automatic batching equipment equipped with the mixer (single-way and dual-way). It can complete automatically the batching process of sand, stone, cement and other 3-6 types of materials.

This series of products use electronic weighing, microcomputer control, digital display and the operation of the wired remote control, they are figured with the accurate weighing, high batching precision, high speed, strong controlling functions, and easy operation and so on.

If combined with the corresponding models, it can compose of a variety of different forms, different specifications of the modular concrete mixing station.

2. Features of concrete batching machine:

This series of products adopt electronic weighing, computer control, digital display, and wired remote control. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, easy operation, reasonable design, compact structure and long service life.

3. Technical Parameters of concrete batching machine:

parameter type items	PLD800	PLD1200	PLD1600	PLB800	PLB1200	PLB1600-I	PLB1600-II	PLB2400
Scale hopper cubage(L)	800	1200	1600	800	1200	1600	1600	2400
Storage hopper cubage(L)	2×2000	2×3500	2×4500	3×2000	3×3500	3×4500	3×4500	3×6000
productivity(m³/h)	48	60	80	48	60	80	80	120
batching accuracy	±%2	±%2	±%2	±%2	±%2	±%2	±%2	±%2
assigned aggregate species	2	2	2	3	3	3-4	3-4	3-6
Feeding height(mm)	2600	2700	2850	2900	3000	3000	3000	3000
power((kw)	6.6	9.0	10	8.8	13	(14)20	16	22
Machine weight((kg)	3110	3550	4000	3660	4220	5110	6480	7850
Weighing mode	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing
Overall dimension (H ×W ×L )(mm)	6200×1750×2870	6000×2235×3460	6000×2000×2850	9000×2000×2900	9100×2235×300	9000(1200)×2000×2850	7840× 3000×3000	10500× 3000× 3000
Recommend mixer Model	type 500	type 750	type 1000	type 500	type 750	type 1000	type 1000	type 1500
	type 350	type 500	type 500	type 350	type 500	type 750	type 750	type 1000
		type 350	type 350		type 350	type 500	type 500	type 750
