CDMA UIM Card

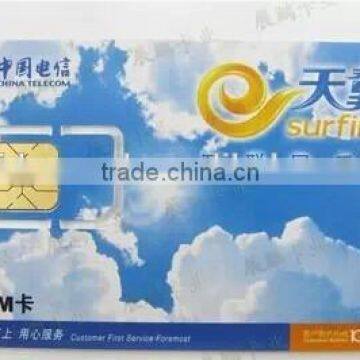

 CDMA UIM Card  for telecom operator

 Product  Descripition :

UIM (User Identity Model) Subscriber Identity Module, is used in a CDMA system network PhoneMobile  smart card, CDMA UIM card into UIM 1X card with CDMA EVDO card (also known as CDMA2000), which supports proprietary encryption algorithms and authentication OTA technology (Over The Air), by way of a radio air interface to the data on the card to be updated and managed. UIM card functions like GSM (GSM) phones use a SIM card, user identification and communication encryption, you can also store phone numbers, text messages and other personal information. Meanwhile UIM card using the SIM card using a card One convenient way, if PhoneMobile  is lost, unfortunately, others can not use other cards to use, the user simply has a matter of personal UIM card inserted into any one with a UIM card interface the Phone Mobile  can be used.

CDMA  R-UIM Card  important parameter Include :

1 .IMSI (15 digits ) ,2 .ICCID(20 digits ) 3. AKEY  4. SID . 5  NID ,SPN PRL , User ID , User PWD

 6. PIN 1,PUK1 ,PIN2 ,PUK2  , MDN

7.  Algorithm -  CDMA: CAVE
                            EVDO: CHAP
DES/3DES
Capacity: 32K, 64K, 128K, 256K.

Above data can be programmed  with PC/SC Card Reader program .

Product Description:

SIM card is One consistent with GSM specifications "smart card", It is actually a chip card that contains the microprocessor, internal five modules, and each module corresponds to a function: CPU (8-bit), the program memory ROMR (3 ~ 8 kb), working memory RAM (6 ~ 16 kb), data memory EEPROM (128 ~ 256 kb) and serial communication unit. SIM card can achieve storage data (phone book, SMS, etc.) and in safe conditions (personal identification number PIN, the authentication key Ki correct) completion of customer identity authentication and encryption algorithms customer information process. These functions are microprocessor having aSIM card from the operating system is complete.

SIM card by the integrated circuit module and the plastic card body mass composition, in line with ISO7816 series of standards
SIM card chip embedded in the circuit board top, and then packaged into the card body inside
The card body material: ABS, PET/ PVC
SIM card can be classified by size: ID-1 cards and Plug-in Card .

 1. Main Characteristics of SIM card

- Matching the standards of GSM11.11,GSM11.12,GSM11.14,GSM11.17.
- Matching the standard of ISO7816.
- Modularization design that is convenient to realize new functions .
- Optimized file management system, which supports file access path selection.
- STK data encrypt and checkout match the GSM03.48 standard absolutely.
- Supporting the norm of the China Mobile OTA2,the little assistant of no agony, Mass Storage Telephone Book,Group Sending Short Message etc.
- Supporting inner backup mechanism to insure the data Integrality.
- supporting T=0 transmission protocol,Communication velocity supports 372/1 and 512/8.
- Having the function that against inserting and pulling out of card when power on,and abnormal power off.
- Supporting the algorithm of DES ,3DES ,COMP128-1 and have protection against attacking mechanism.
- Supporting the function of the circuitry encrypt and circuitry secrecy ,preventing communication data against being stolen or juggled unlawful .And it can be used to check out the data integrality.
- Agile individuation instructions not only insure the require of safety management but also can satisfy all kinds of Customer’s requires of pluralistic STK functions.
- Perfect safety function and safety strategy,passed EAL4+safe  authentication.

2. Development standard

[1] ISO/IEC 7816-3 (1997): "Identification cards - Integrated circuit(s) cards with contacts, Part 3: Electronic signals and transmission protocols".
[2] GSM 11.14:Digital cellular telecommunications system (Phase 2+);Specification of the SIM Application Toolkit for the SubscriberIdentity Module - Mobile Equipment(SIM - ME) interface (V8.3.0:2000)
[3] GSM 11.11:Digital cellular telecommunications system (Phase 2+); Specification of the Subscriber Identity Module - Mobile Equipment (SIM - ME) interface(V8.3.0 :2000-08)
[4] GSM 11.12:Digital cellular telecommunications system (Phase 2); Specification of the 3 Volt Subscriber Identity Module - Mobile Equipment (SIM - ME) interface(V4.3.1:1998-03)
[5] GSM 11.17:Digital cellular telecommunications system (Phase 2+) Subscriber Identity Module (SIM) conformance test specification (GSM 11.17 version 7.0.2 Release 1998)
[6] GSM 03.48:Security mechanisms for SIM application toolkit;Stage  2(GSM 03.48 version 8.8.0 Release 1999)
[7] Implementation Specification of Downloading Monternet SMS Service Menus on STK SIM Over The Air (Phase 2) V2.0(QB-QT-003-2003,2003-04)
[8] Testing Specification of Downloading Monternet SMS Service Menus on STK SIM Over The Air (Phase 2) V2.0(QB-QT-003-2003,2003-06)

3. Communication Protocol

The Grcard SIM card products support the asynchronous half duplex character transmission protocol (T=0) that be defined in ISO7816-3 which use Direct convention.
It support the two kinds of parameters, F =512, D=8 and F=372, D=1 in this operate system communication.

4.Answer To Reset

For the T=0 communication protocol, the following forms is our SIM Card product’s default reposition response in formations:

5. Cryptographic System and Access Control

Card Holder Verification information(CHV),CHV unlock key,ADM key ,A3/A8 algorithm key Ki.
The following are the key type and id which be Grcard SIM card series products supported.

The file access policy for GSM application is independent each other, For example:providing correct CHV2(CHV2 access condition satisfied) not means the operation controlled by CHV1 could be implement successfully.

6. Chip Parameters

Grcard telecom IC card chip prouduts are high performance IC used in smartcard. In the chip there are 8 bit micro processor,48K byte program memorizer(MASK ROM),256 byte internal RAM (SRAM),1K byte outside RAM(SRAM),32K byte data memorizer (EEPROM).

7.1 Main character of chip
CPU
— 8 bit CPU or 16bit CPU
Memory size: 16K,32K ,64K or 128K

EEPROM
— single byte read ,write, and wipe
—multi bytes storage(1byte to1page)
— program clock come from vibrate clock that generated by chip itself
— At the normal temperature, can proceed at least 100,000 times erase
and write operations.
— EEPROM data endurance more than ten years
—EEPROM program voltage generated in the chip

Serial I/O interface
—Match ISO/IEC-7816
— asynchronous half duplex transmission protocol
— Two kinds of transmission velocity(372/1 and 512/8)

optional Randomizer
—8- bit randomizer

Power on reset
— internal power on reset mechanism

Low power work mode
—SLEEP mode
— CLOCK STOP mode
Safety mechanism
— Abnormal voltage/frequency detection function, DPA/SPS attacking immunity
Work temperature
—-25°C to +70°C
Work voltage
— 2.7V to 3.3V,4.5V to 5.5V
Work frequency
— 1 - 5 MHz (3.57MHz)

 7.2 System Frame

Packing and Shipping

1. 200pcs /box ,  2000pcs ,3000pcs ,5000pcs /carton ,  carton is paper carton

2. Shipping :  By express, by air or  sea

3. Weight :7Kg /1000pcs
