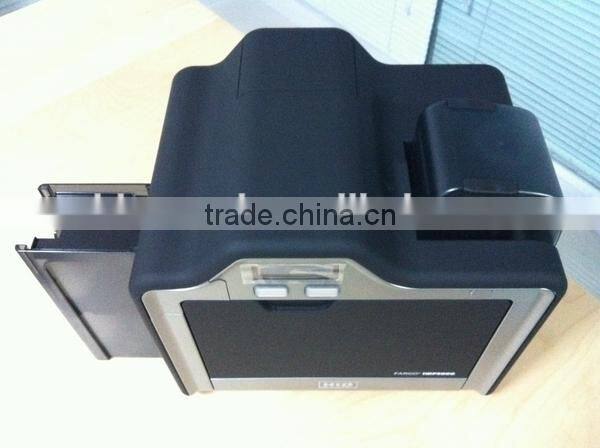

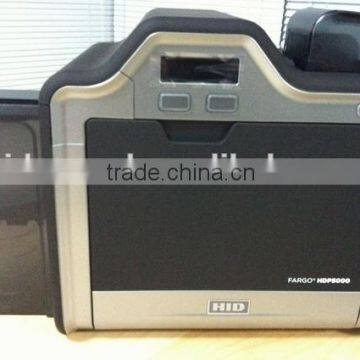

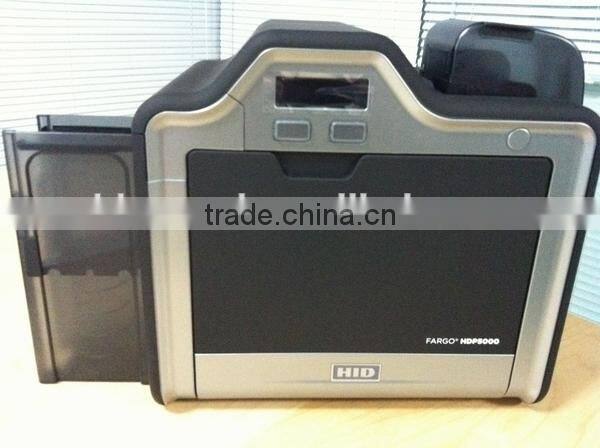

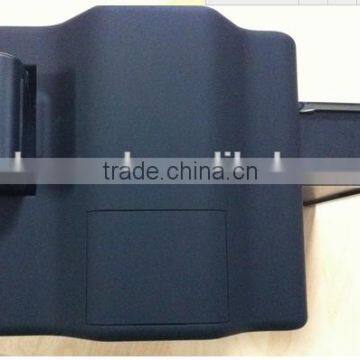

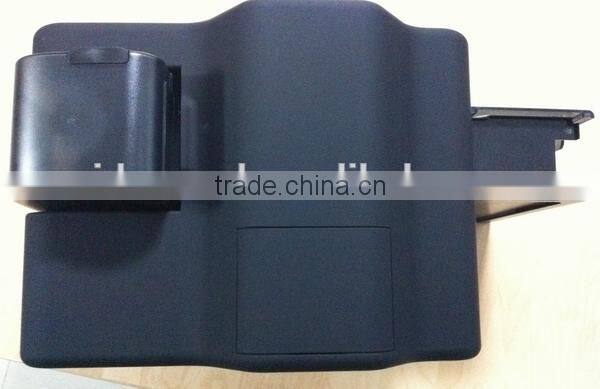

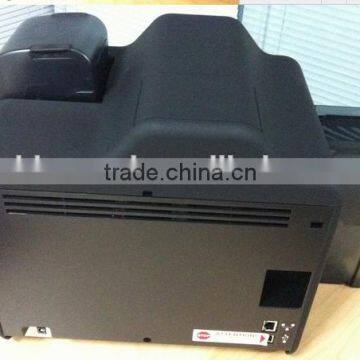

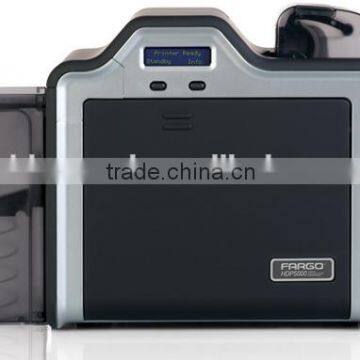

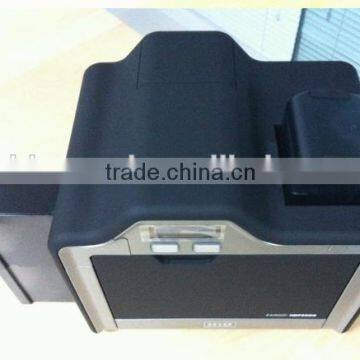

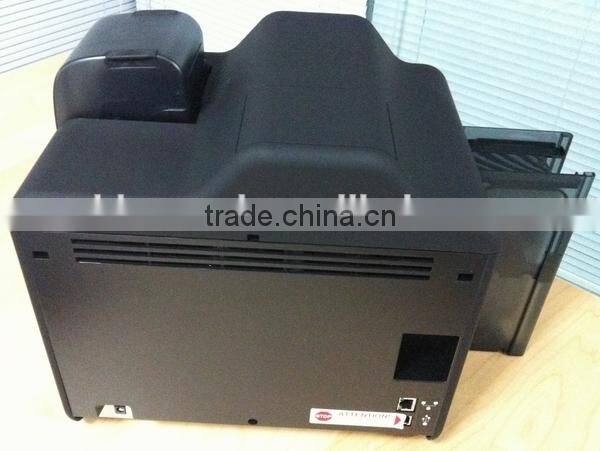

Fargo HDP5000 Single-Sided ID Card Printer

Fargo HDP5000 Single-Sided ID Card Printer

Note: When you send feedback, please note single one or dular one, thanks!

Specifications Overview:

Print Method:

• HDP Dye-Sublimation/ Resin Thermal Transfer

Resolution:

• 300dpi (11.8 dots/ mm)

Colors:

• Up to 16.7 million/ 256 shades per pixel

Print Ribbon Options:

• Full-color, YMC*, 750 prints

• Full-color with resin black, YMCK*, 500 prints

• Full-color with two resin black panels, YMCKK*, 500 prints

• Full-color with resin black and heat seal panel for difficult-to-print surfaces, YMCKH*, 500 prints

• Full-color with resin black and inhibit panel for signature or other non-printing areas, YMCKI*, 500

   prints

• Full-color with fluorescing and resin black, YMCFK*, 500 prints

• Resin black, K, 3000 prints

HDP Film Options:

• Clear (1,500 prints) • Standard Holographic (500 print) • Custom Holographic, special order

  (500 print)

Overlaminate Options:

• Thermal Transfer Overlaminate, 25mil thick, 500 prints

• PolyGuard® Overlaminate, 1.0 mil and 6mil thick, 250 prints (PolyGuard available in a CR-80 patch

   size) All overlaminates available in clear, standard holographic design or custom holographic

   design

Print Speed:**

Batch Mode:

•26 seconds per card/ 138 cards per hour (YMC with transfer)*

•32 seconds per card/ 113 cards per hour (YMCK with transfer)*

•47 seconds per card/ 77 cards per hour (YMCKK with transfer)*

•37 seconds per card/ 97 cards per hour (YMCK with transfer and dual-sided, simultaneous

  lamination)*

•55 seconds per card/ 65 cards per hour (YMCKK with transfer and dual-sided, simultaneous

  lamination)*

Accepted Standard Card Sizes:

• CR-80 (3.370"L x 2.125"W/ 85.6mmL x 54mmW)

Print Area:

• Over-the-edge on CR-80 cards

Accepted Card Thickness:

• Print only: .030" (30mil) to .050" (50mil) / .762mm to 1.27mm

• Print/ Lamination: .030' (30mil) to .050" (50mil) / .762mm to 1.27mm

Accepted Card Types:

ABS, Laminated PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards

Note: ABS and PVC cards are not recommended for use in the HDP5000 Lamination Module.***

Input Card Cartridge Capacity:

• 100 cards (.030"/ .762mm)

Output Hopper Card Capacity:

• 200 cards (.030"/ .762mm)

Card Cleaning:

• Replaceable cleaning roller (included with each print ribbon)

Memory:

• 16MB RAM

Display:

• User-friendly, SmartScreen™ LCD Control Panel

Software Drivers:

• Windows® 2000/ XP/ Server 2003/ Vista (32bit); Mac OS X v10.4/ v10.5; and Lunux****

Single Wire USB 2.0 Encoding Options:

• ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3

• Contactless Smart Card Encoder (HID iCLASS and MIFARE)

• Contact Smart Card Encoder reads from and writes to all ISO7816-1/2/3/4 memory and

   microprocessor smart cards (T=0, T=1) as well as synchronous cards

• Prox Card Reader (HID read-only)

Interface:

• USB 2.0 (high speed) and Ethernet with internal print server

System Requirements:

• x86 based PC or compatible, Windows 2000, Windows XP, Windows 2003, or Windows Vista,

   500MHz computer with 256MB of RAM or higher, 500MB free hard disk space or higher

Operating Temperature:

• 65° to 90°F / 18° to 32°C

Supply Voltage:

• 100-240 VAC. 3.3A

Humidity:

• 20-80% non-condensing

Dimensions:

• HDP5000: 11.50"H x 12.25"W x 9.25"D / 292mmH x 313mmW x 235mmD

• HDP5000+Dual-Sided Module: 11.50"H x 25"W x 9.25"D / 292mmH x 445mmW x 235mmD

• HDP5000+Single-Sided Lam Module: 12.75"H x 25"W x 9.25"D / 324mmH x 635mmW x 235mmD

• HDP5000+Dual-Sided Module+Dual-Sided Lam Module: 12.75"H x 30"W x 9.25"D / 324mmH x

   762mmW x 235mmD

• Lam Module: 12.75"H x 12.25"W x 9.25"D / 324mmH x 313mmW x 235mmD

Weight:

• HDP5000: 16lbs./ 7.3kg HDP5000+Dual-Sided Module: 22lbs./ 10kg, HDP5000+Single-Sided Lam

   Module: 28lbs./ 12.7kg, HDP5000+Dual-Sided Module+Dual-Sided Lam Module: 36lbs./16.4kg

Agency Listings:

• Safety: UL 60950, CSA C2.2 No 60950, CB report (EN60950), and CE mark

• EMC: FCC Part15 Class A, EN55022: 1998 Class A, CRC c1374, EN61000-3-2: 2000, EN61000-3-2:

  1995, EN55024: 1998, CE mark, and CCC mark

Supply Voltage:

• 100-240 VAC, 38A

Fargo Secure Materials:

• Fargo Card Printer/ Encoders require highly specialized media to function properly. To maximize

   printedcard quality and durability, printhead life and printer/ encoder reliability, use only Fargo

   Secure Materials

• Fargo warranties are void, where not prohibited by law when non-Fargo Secure Materials are

   used.

Options:

• Card Lamination Module - single-sided or dual-sided (simultaneous)***

• Magnetic stripe encoding

• 200-card input hopper

• Smart card encoding (contact/ contactless)

• Dual-sided printing

• Door and cartridge locks

• Printer cleaning kit

Software:

• Fargo Workbench Diagnostic Utility
