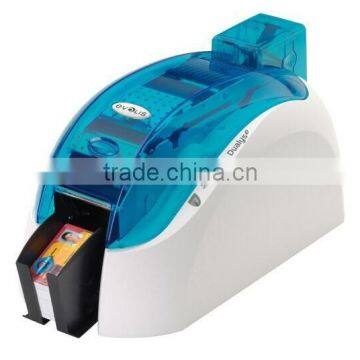

Evolis Dualys 3 Dual Sided card Printer with USB and Ethernet

PRINTER SPECIFICATIONS

Specifications

Color printing module, 300 dpi print head (11.8 dots/mm); USB (cable supplied) & Ethernet TCP-IP connections16 MB of RAM: memory resource for two cards in color for both sides. Flip-over station for dual-sided printing Output hopper with a capacity of 100 cards (0.76 mm, or 30 mil)Control panel with 1 button and 4 LEDs Cover color: Ocean Blue RoHS-compliant

Printing Features

Color-dye sublimation and monochrome thermal transfer Enhanced color management system Edge-to-edge printing Dual-sided, edge-to-edge printing Integrated ribbon saver for monochrome printing

Optional Accessories

Encoding options (can be combined):

Magnetic stripe encoder ISO 7811 HiCo/LoCo or JIS2

Smart contact station: ISO 7816-2

Smart contact station and encoding unit: PC/SC, EMV 2000-1

Contactless encoding unit: ISO 14443A, B, ISO 15693, Mifare, DesFire, HID iCLASS

Additional 100-card feeder: available in two colors
Manual card feeder, available in blue
Travel bag and case
Cleaning kit

Printing Speeds

Color 1 side (YMCKO): 150 cards/hour
Color 2 sides (YMCK0-K): 125 cards/hour
Monochrome 1 side: up to 1,000 cards/hour
Monochrome 2 sides: up to 350 cards/hour

Card Types

ISO CR-80 – ISO 7810 (53.98 mm x 85.60 mm – 3.375” x 2.125”)

All PVC, Composite PVC cards, PET, ABS(1) and special varnished cards

From 0.25 mm (10 mil) to 1 mm (40 mil)
Dual-sided printing, from 0.50 mm (20 mil) recommended

Supported Operating Systems

Windows™ 7, XP and Vista (32 & 64 bits)
Drivers for Windows™ 2003 and 2000 available on demand
Macintosh™ OS X v10.2 – 10.6
Linux

Resident Fonts

Arial 100, Arial bold 100
Barcode: Code 39, 2/5 interlaced

Interface

USB (cable supplied) & Ethernet TCP-IP connections

Physical Characteristics

Length 447 mm (17.59")
Height 235 mm (9.25")
Width 237 mm (9.33")
Weight 7.4 Kg (16.31 Lbs)

Operating Characteristics

Min/max operating temperature: 15° / 30 °C (59° / 86 °F)
Humidity: 20% to 65% non-condensing
Min/max storage temperature: -5° / +70 °C (23° / 158 °F)
Storage humidity: 20% to 70% non-condensing
Operating ventilation: free air
Power supply: 100-240 V AC, 50-60 Hz, 1.8 A
Printer: 24 V DC, 3 A
