Home > Products > shutter door/door frame roll forming machine > roller shutter door roll forming machine
roller shutter door roll forming machine
- 30 Set / Sets per Month
- NEW PORT TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 5-7m/min,2000pcs/day(8 hours work) | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX-760 shutter door | |
| Power(W) | 3KW | Voltage | 380V 50HZ 3phase 1 phase voltage 220V | |
| Dimension(L*W*H) | 5.5mx1.4mx1.5m | Weight | 4T | |
| Certification | TUV | Warranty | One year warranty maintenance free life | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Welcome to review our roll forming machinewe are manufacture
Customers decide
Saving time and cost
complete service

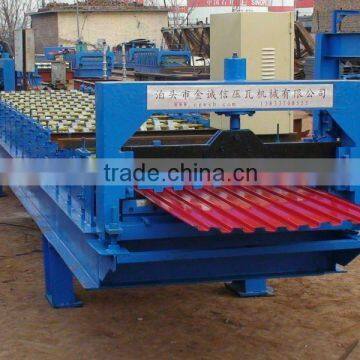

Welcome to view JCX 760 shutter door roll forming machine
Profile drawing
1.Technical parameters:
No. | main parameter of shutter door roll forming machine | |
1 | Suitable to process | Color steel sheet |
2 | Effective width | 760mm |
3 | Roller steps | 12 rows |
4 | Dimensions | 6m*1m*0.9m (depend on different profile) |
5 | Main Power | 4kw(according customer's requirement) |
6 | Thickness of the plate | 0.6-0.8mm |
7 | Productivity | 5-7m/min |
8 | Coil width | 1000mm |
9 | Weight | About 4 T |
10 | Voltage | 380V 50Hz 3 phases |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |
15 | Wave height | 120mm |
16 | Material of roller | Gcr15 steel |
2.Components of line:
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
Application
It can be used in the gate,shutter door,window ;nice appearance, durable
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $50/days
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China
Welcome to contact us
Ada Yang
Marketing Department
Botou Golden Intergrity Roll Forming Machine Co., Ltd
Nancang Street, Botou City,Hebei Province,ChinaZIP:062150
Call:18034479939(whatsapp)
Skype:adayang6929
