4kw power automatic 760 metal shutter door roll forming machine with 5-7m/min
- NEW PORT TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
New Condition and Shutter door roll forming machine Type Shutter door roll forming machine
-
Australia Shutter Door Roll Forming Machine
-
Produce manufactory steel roller shutter door machinery
-
High Quality Roll Shutter Door Roll Forming Machine/Roller Shutter/Rolling Slats
-
roller shutter door price,Rolling Door Equipment Roller Shutter Door Making Machinery
-
factory direct price, steel roll-up shutter door roll forming machine,tile machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 5-7m/min,2000pcs/day(8 hours work) | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX-760 shutter door | |
| Power(W) | 3KW | Voltage | 380V 50HZ 3phase 1 phase voltage 220V | |
| Dimension(L*W*H) | 5.5mx1.4mx1.5m | Weight | 4T | |
| Certification | TUV | Warranty | One year warranty maintenance free life | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Welcome to review our roll forming machinewe are manufacture
Customers decide
Saving time and cost
complete service
Welcome to view JCX 760 shutter door roll forming machine
according to customers requirements ,costom roll forming machine
panel picture
1.Technical parameters:
No. | main parameter of shutter door roll forming machine | |
1 | Suitable to process | Color steel sheet |
2 | Effective width | 760mm |
3 | Roller steps | 12 rows |
4 | Dimensions | 6m*1m*0.9m (depend on different profile) |
5 | Main Power | 4kw(according customer's requirement) |
6 | Thickness of the plate | 0.6-0.8mm |
7 | Productivity | 5-7m/min |
8 | Coil width | 1000mm |
9 | Weight | About 4 T |
10 | Voltage | 380V 50Hz 3 phases |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |
15 | Wave height | 120mm |
16 | Material of roller | Gcr15 steel |
2.Cmponents of line:
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
specialized manufacturer of roll forming machine,any requests just mail me.
Technical specification of every parts
1).decoiler: Optional
<1>. Manual un-coiler
|

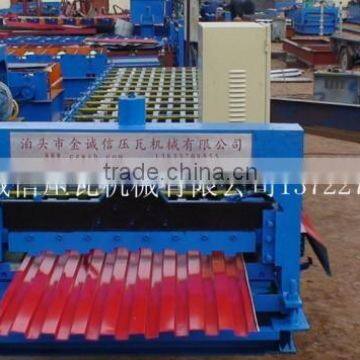

real photo of machine:
| Production Description | |
|
Technical process:
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
