Tile Making Machine
- Tianjin new port
- T/T
You May Like
Product Details
| Type | Tile Forming Machine | Tile Type | Colored Steel | |
| Use | Roof | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | 860 |
Product Description
Specifications
Our products have been exported to many countries. We engage in the design and produce of all kings of roll forming machine.Detailed Product Description
Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form c
Detailed Product Description
1,roll froming machine:Fast
2,Little error
3,Quality is stable
Introducation

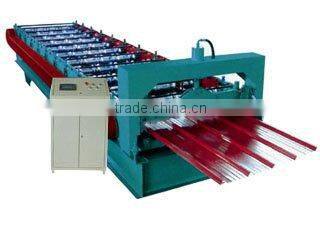

Machine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of coil sheet: 0.3-0.8mm
Main Motor Power: 4 kw
Forming Speed: 10-12m/min
Hydraulic station power: 3kw
Quantity of stand:about 14 or 16 stands
Hydraulic pressure:10-12mpa
controlling system: PLC
Index error of length:10m+2mm
Total weight: about 6 tons
Voltage: 380V 3phase 60 HZ or at buyer's requirement
Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at 72mm
Cutting blade: Cr12 mould steel with quenched treatment
