Steel Tile Forming Machine
- Tianjin new port
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | JCX | |
| Model Number | JCX-750 | Material | Steel | |
| Use | Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant |
Product Description
Specifications

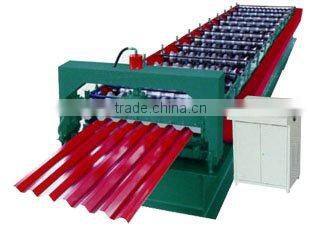

ROOF PANEL FORMING MACHINE 750PLC control Box. hydraulic cutting, work automatically
ROOF PANEL FORMING MACHINE 750
Cover width | Coil width | Wave height | Wave length | usage |
750(mm) | 1000(mm) | 35(mm) | 125(mm) | Roof and wall |
1. Technique parameters of the processing line
(1) Suitable material: galvanized sheet/colored coil
(2) Thickness of the plate : 0.3 -0.8mm
(3) Width of the plate before forming:1000mm
(4) Productivity :8-12m/min
(5) Roller steps :11 rows
(6) Roller material: 45# steel
(7) Diameter of active shaft: 70mm
(8) Wall thickness of the main forming machine: 12mm steel plate
(9)Main forming machine body : 300mmH steel
(10) Transmission chain is0.6’’,;
Reducer is 3kw Xingxing Cycloid which works stably and no noise.
(11) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 3kw, no noise, work stably, long life expentancy.
(12) Taida PLC control systerm, easy to operate, high precision and work stably.
(13) Dimensions of major structure:6200mm*1550mm*1400mm
3. Processing technique and deployment
Processes: Manual decoiler—Roll forming machine—PLC system—Hydraulic system-Post cut—Stacking
Components of line:
NO | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | PLC Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Post cut | set | 1 |
6 | Stackinig | set | 1 |
Sales terms
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 30 days after receipt of advance payment
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee

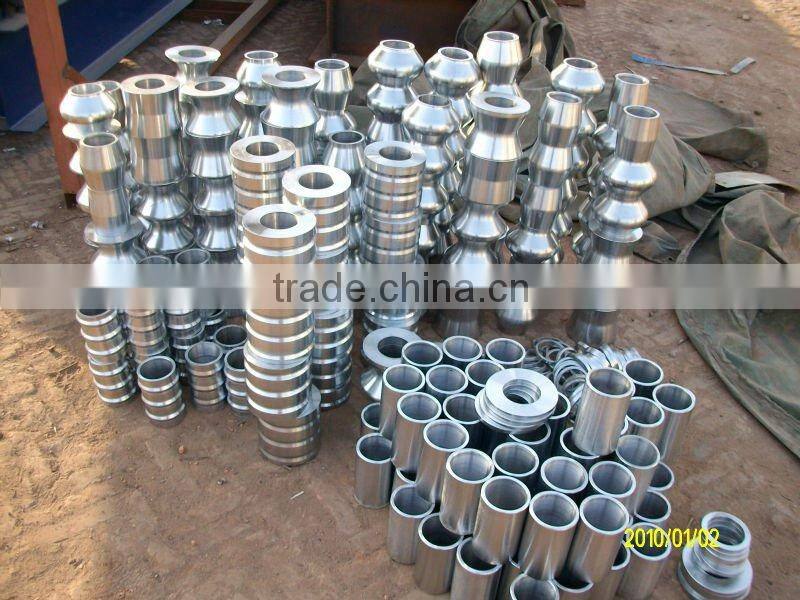

MACHINE ROLLERS
