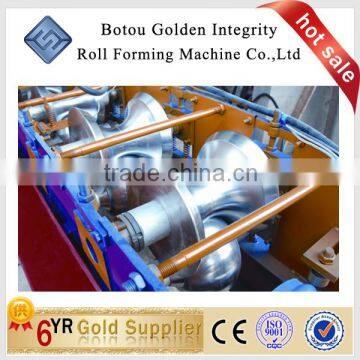

Used Color Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine/Making Machine China

FOB Price

US$ 8,500 - 19,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Steel	Use	Roof
Production Capacity	2-4m/min	Place of Origin	Hebei, China
Brand Name	JCX	Model Number	312
Power(W)	4+3kw	Voltage	380V 50hz three-phase
Dimension(LWH)	7.2m1.4m1.5m	Weight	3.2t
Certification	CE ISO9001	Warranty	1 year, one year
After-sales Service Provided	Engineers available to service machinery overseas

Specifications of Ridge Cap Roll Forming Machine - metal roof ridge cap making machine

Reference Drawings

No.	main parameter of Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	45mm
3	Rollers	15rows
4	Dimensions	6.50.81.51m
5	Power	3+3kw
6	Thickness of the plate	0.3-0.8mm
7	Productivity	8-15m/min
8	Diameter of the roller	Φ70mm
9	Weight	About 3T
10	Voltage	380V 50Hz 3phases
11	Material of the cutting plate	Cr12
12	Hydraulic	40#
13	Processing precision	Within 1.00mm
14	Control system	Panasonnic PLC control

C. Flow chart

D. Technical specification of every parts

1).decoiler: Optional
<1>. Manual un-coiler

<2>. Hydraulic decoiler

2)photo of machine

3)Hydraulic Cutting

4) Electric control system:

5).Hydraulic system

6.Stacker : Optional

(1). manual

(2) Auto
