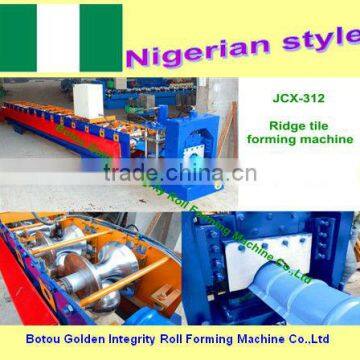

312 ridge cap tile roll forming machine

Specifications

312 ridge cap roll forming machine, roof panel sheet machines for sale,roof panel steel machinery china

Details of ridge tile roll forming machine as follows:

1. General performance of the line
1) Material thickness: 0.3-0.8mm
2) Material width: max 1250mm
3) controlling device:PLC
4) Line speed:2-4 m/min
5) Power supply: 380V/ 50Hz/ 3Phase

6) Total power: 4+3 kw

7) Dimension: about 7.2m*1.4m*1.5m
8) Feeding width: 500mm

9) Number of forming stations: 13-15 pairs

2. Working flow

1) Decoiling: feeding of the material for bottom metal strip.

2) Roll forming: producing the bottom metal strip for roof or wall panel.

3) Raw material feeding table: In order to feeding the mmaterial straightly.

4) Main forming station: shaft material is 45# steel forged,roller material is 45# bearing steel.

5) Cutting system: material of the cutting blade is Cr12MoV,the best cutting distance of the blade is within 1mm.

6) Controlling system: All the production line will controlled by the PLC,realized the full- automatic.

7) The counter: every machine we will provided several extra counters for the damage of the counter.

8) Run-out table:we have different kinds of receiving table,the simple one,the auto-stacker or other designed run out table,we can designed it according your demand.

9) We will provided a whole production line if you have no special requests.

The production of ridge tile roll forming machine:

♣ Payment:T/T,L/C,cash.

♣ Payment terms:EXW,C&F,CIF are available.

♣ Delivery:within 30 working days.

♣ warranty:In correct operation and maintance,the machine is one year guarantee since leaving the seller's factory,and we will provide technical support for the machine.

♣ Installation:If buyer needed,the seller will send one or two technician to the buyer's factory to install & testing the machine.

Our machine advantage:

Our customers:

We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China. We manufacture various kinds of roll forming machine for producing the following products. Such as Roof  Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck,  C & Z Purlin, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe...etc.

Our products, with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, Ghana,Vietnam, Myanmar, Russsia, Kazakhstan,Turkmenistan, India, Philippines ...etc.

Welcome to visit our factory! We shall create a beautiful future with you by our management tenet " top quality, credit based".
