0.25-0.8mm thickness IBR and corrugated double layer sheet roof tile roll forming machine
- 30 Set / Sets per Month
- Tianjin CN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
IBR and corrugated double layer sheet roofing tile roll forming machine
-
0.25-0.8mm thickness double layer sheet roof panel roll forming machine
-
New type- double tiles sheet forming machinery
-
JCX-PLC Control, IBR and corrugated double layer sheet roof panel roll forming machine
-
Hot Sale!!! JCX1066 & 1015, IBR and corrugated double layer sheet roof panel roll forming machine
-
Hot Sale! 0.25-0.8mm thickness, JCX1066 & 1015, IBR and corrugated double layer sheet roof panel roll forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored | Use | Floor | |
| Production Capacity | 8-15m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX1066 & 1015 | |
| Dimension(L*W*H) | 8500x1500x1500mm | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
High quality;Warranty: 1 year;
If necessary, engineers available to service machinery overseas;
TUV Certification

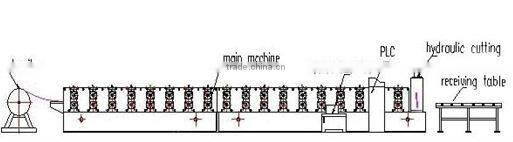

Processes: Man-made uncoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table

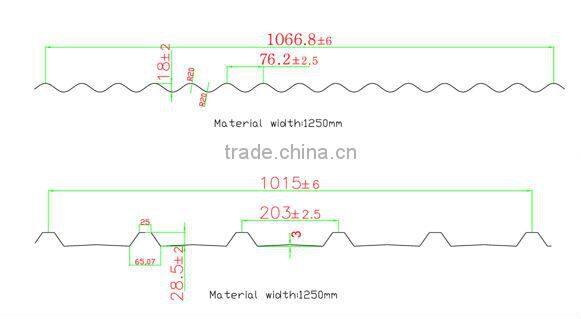

Profile of panels:
Specifications:
No. | Item | Description |
1 | Suitable material | Color steel sheet ,galvanized steel sheet, Aluminium sheet |
2 | Working speed | 8-15m/min |
3 | Main motor power | 4kw with cycloidal reducer |
4 | Hydraulic station power | 5.5kw |
5 | Electrical control system | PLC control system with famous brand |
6 | Thickness of material | 0.25mm~0.8mm |
7 | Shaft diameter | 70mm |
8 | Roller station | 18 stations & 18stations |
9 | Material expand axis | 1000mm/1200mm/1220mm/1250mm |
10 | Dimension | 8500x1500x1500mm |
11 | Driving mode | Chain |
12 | Electric tension | 380V 3phase 50HZ or as the customer's requirements |
13
| Material of roller | High grade 45# forged steel plated with hard chrome plating |
14 | Material of cutting | Cr12 mould steel with quenched treatment |
15 | Working time | Can be 24 hours |
16 | Workers | 1-2 only |
Our machine's advantage
Seaworthy Packing:
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
Minimum Order Quantity: | 1 |
Price: | negotiable |
Packaging Details: | seaworthy packing |
Delivery Time: | 30 days |
Payment Terms: | T/T, LC, CASH ETC |
Supply Ability: | 30 Sets per month |
Contact Us
- Botou Golden Integrity Roll Forming Machine Co., Ltd.
- Contact nameJie Yang Chat Now
- Phone86-317-8269160
- AddressDevelopment Area, Botou
