, Mitsubishi PLC Hydraulic Cutting Downspout Pipe Forming Machine
- Tianjn CN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
JCX840&900-E1, Glazed Tile and IBR Double-layer Roof Metal Sheet Roll Forming Machine
-
JCH Rolling Forming Machine
-
475JCH Rolling Forming Machine
-
RAL PPGI Steel Coils With Top Coating 15-25um , Back Coating 5-15um
-
Zinc Coated Galvanized Steel Coils For Construction , Decoration
-
Blue Red Yellow Steel Coils , Prepainted Steel PPGI Coils
Product Details
| Condition | New | Type | Other, pipe forming machine | |
| Tile Type | Colored Glaze Steel | Use | Other, downspout pipe | |
| Production Capacity | 10-15m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX-80-300mm/60-200mm | |
| Certification | TUV | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
High quality;Warranty: 1 year;
If necessary, engineers available to service machinery overseas;
TUV Certification
Specifications:
1.Roller supporting structure type: guide column
2: High speed
3: Mitsubishi PLC
4:Running steadily

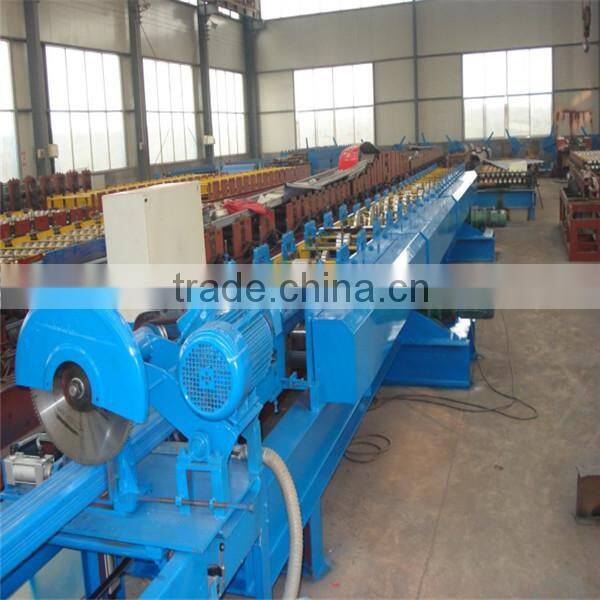

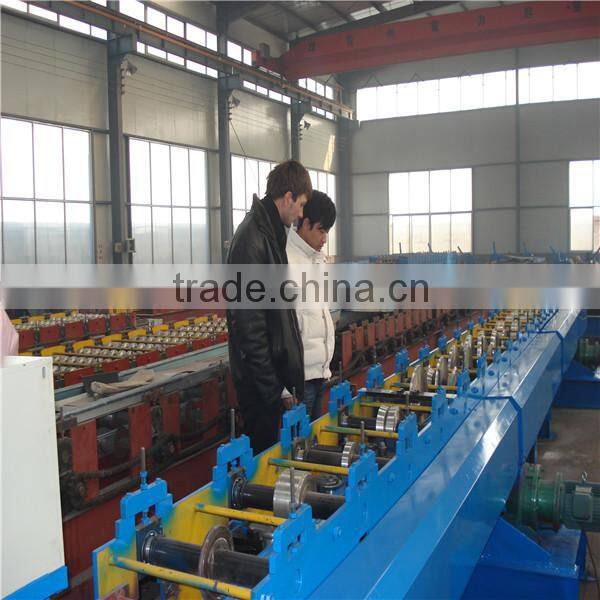

The down spout forming line includes in unpowered decoiler unit, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system and product supporter.
Curving pipe forming machine is the complementary equipment for down pipe forming machine. It can make curve for down pipe to meet the requirement of practical engineering projects.
Technical Parameters
No | Item | Parameter | Remark | |
1 | Suitable
Material | Type | Color coating steel |
|
Width(mm) | 1250 | According to customer's requirement | ||
Thickness(mm) | 0.5-0.6 | According to customer's requirement | ||
Yield Strength(Mpa) | 230-300 | According to customer's requirement | ||
2 | Forming Speed(m/min) | 10-15 | Not Including Cutting | |

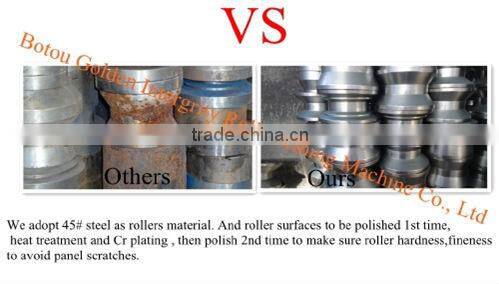

3 | Roller Material | No.45 steel | with hard chromized | |
4 | Cutting Model | Hydraulic Cutting | According to customer's requirement | |
5 | Power source | Type | 380V/3PH/50HZ | According to customer's requirement |
Components of the machine
No | Name | Quantity | Remarks | |
1 | Decoiler |
| 1set | Up to customer |
2 | Main Machine | Guiding Device | 1set | Up to customer |
Roll Forming | 1set |
| ||
Close Safety Cover | 1set |
| ||
Post-cutting | 1set |
| ||
Hydraulic System | 1set |
| ||
3 | Electric Control System | 1set |
| |
4 | Supporter/Automatic Stacker | 1set | Up to customer | |

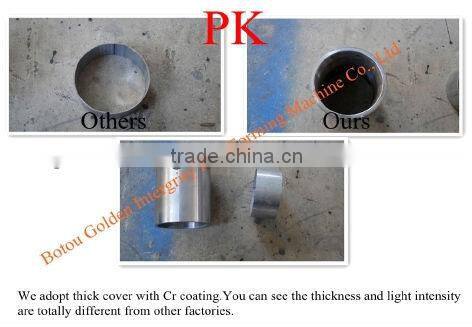

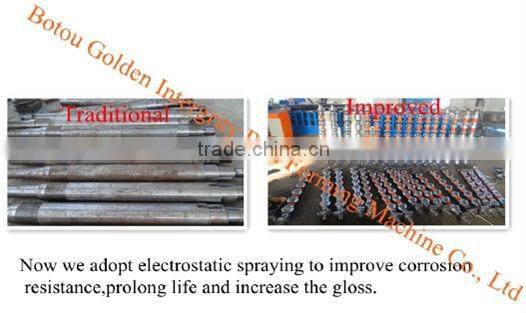

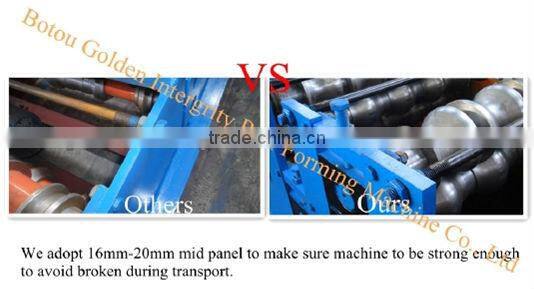

Our Machine's Advantage

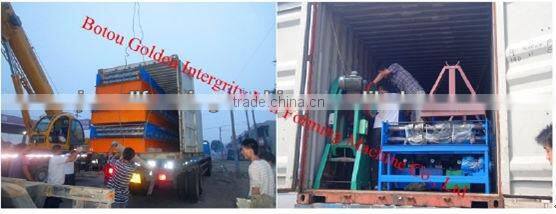

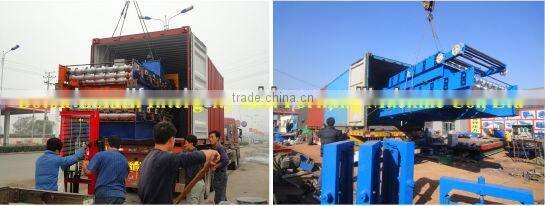

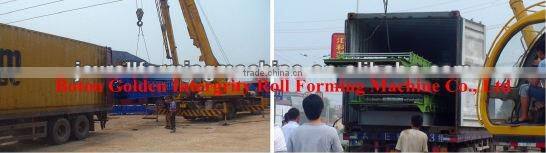

Seaworthy Packing:
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
Minimum Order Quantity: | 1 |
Price: | negotiable |
Packaging Details: | seaworthy packing |
Delivery Time: | 30 days |
Payment Terms: | T/T, LC, CASH ETC |
Supply Ability: | 30 Sets per month |
