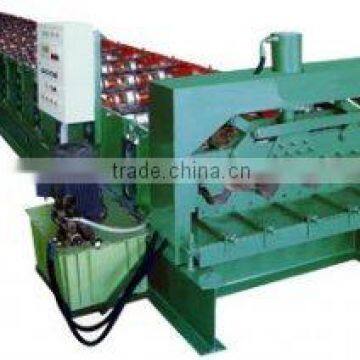

floor deck roll forming machine
- 20 Set / Sets per Month
- tianjin port
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | jinchenxin | |
| Model Number | JC-750 |
Product Description
Specifications
floor decking forming machine:1.Beautiful appearance;
2. a reasonable price;
3. complete service
Our floor deck roll forming machine :
Pressed Steel Type | 75-187.5-750 | usage | ||
Effective coverage width | 750mm | |||
Expand Width (mm) | 1250(mm) |
steel bearing plate floor | ||
Thickness (mm) | 0.8 | 1.2 |
| |
Cross-section from the inertia (cm4 / m) | 118.09 | 176.51 |
| |
Cross-section to withstand the distance (cm3 / m) | 49 | 73.62 |
| |
The main technical parameters:
1. Passive leak: manual up tight, passive leak
2. Leak rack load: 8T
3. Rack: Using 400H steel welding
4. Forming Machine-driven feeding frame Type: Side roller
5. Forming Machine Type: wall-type chain drive wall thickness of 18mm
6. Shaft Diameter: 90 mm
7. Chain: 2-inch single-row
8. Forming Motor Power: 18.5KW 9 Hao reducer
9. Forming Machine speed: 8m/min
10. Forming Machine Road Number: 25
11. Roll Material: high quality steel forging pieces
12. Hydraulic station motor: 4kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 ° -60 °
17. Rolling Thickness: not less than 1.5mm
18. Material Expand Width: 1250mm
19. Length Length Accuracy: ± 2mm
20. The computer use of PLC, Japan's Panasonic
21. Computer operation.
