Boltless Type Roll Forming Machine

FOB Price

USD $10,000 - $40,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Our products has feasures of
1. nice appearence
2.high efficency
3.low noize
4. easy control.

Suitable material	color steel sheet
Thickness of raw material	0.5—0.6mm
Yield strength of material	235Mpa
Working Speed	about 2000-3000mm/min
Step distance	adjustable according to requirement (>=250mm)
Power Requirement	Main motor power:	5.5Kw (Depend on final design)
	Hydraulic station power:	5.5Kw (Depend on final design)
Uncoiler's loading capacity	Max. Capacity: 5000kgs (can be increased to be 10T)
Controlling system	Mitsubishi PLC & converter
Machine's size	about 18m×1.5m× 1.4m (Depend on final design)

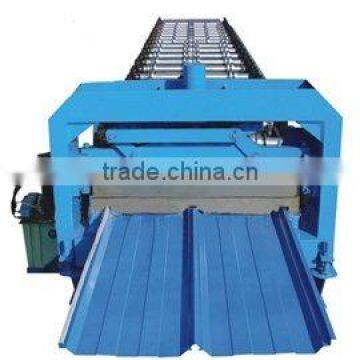

Boltless type tile forming machine

Material of main equipment:

Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.

Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.

Cutting blade: Cr12 mould steel with quenched treatment.

They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.

Botou Golden Integrity Roll Forming Machine Co., Ltd.: Contact nameJie Yang
Chat Now; Phone86-317-8269160; AddressDevelopment Area, Botou
