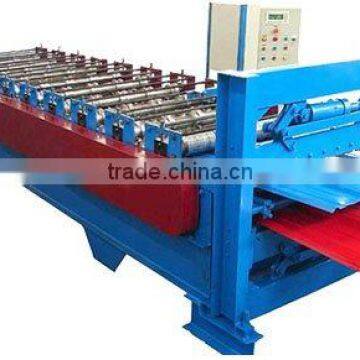

Double Colored Steel Roll Forming Machine
- tianjin port
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | jinchengxi, jinchengxin | |
| Model Number | JCX2, JCX-840/1050 |
Product Description
Specifications
Our double roll forming machine:reasonable,
ntinuous innovation and progres
3.best after sales service
Cover width | Coil width | Wave height | Wave length | usage |
840/900(mm) | 1000(mm) | 25/15(mm) | 210/225(mm) | Roof and wall |
(I) Main technical parameters:
1. Passive leak: manual up tight, passive leak
2. Leak rack load: 4T
3. Rack: Using 300H steel welding
4. Forming Machine-driven feeding frame Type: Side roller
5. Forming Machine Type: wall-type chain drive
6. Shaft Diameter: 72 mm
7. Chain: 0.6-inch single-row
8. Forming Motor Power: 3K reducer
9. Forming Machine speed: 10m/min
10. Forming Machine Road Number: 840 11-axis, 900 9 shaft.
11. Roll Material: high quality steel Duan playing pieces
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 ° -60 °
17. Rolling thickness: 0.3-0 .8 mm
18. Material Expand Width: 1000mm
19. Length Accuracy: ± 2mm
20. The computer use of PLC, Taiwan Delta.
21. Computer Operator
(II).Device configuration:
Passive leak rack (4T), forming the host, hydraulic forming shears, hydraulic station, PLC computer control cabinet.
(III).Equipment manufacturing cycle: 14 days
