Express Highway Guard Rail Tile Press

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Hebei, China

Brand Name

JCX

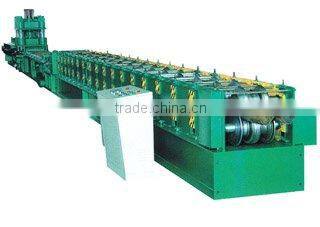

highway guardrail roll forming machine1. Nice appearence.
2. Low noise.
3. High efficiency.
4. Good quality.

1. MAIN PARAMETERS:

1	Main moter power	18.5KW
2	Hydraulic station power	11KW
3	Hydraulic oil pump	CB-E310
4	Sprocket	P-50.8
5	Roller station	16
6	Yield strength	32MPa
7	Diameter of principal axis	95MM
8	Material of roller	45#steel hard chrome plating
10	Processing speed	8m/min
11	Thickness	0.3-4mm
12	Installation dimension about(LWH)	10.51.41.2M
13	Material of blade	Cr12
14	Total weight	10T

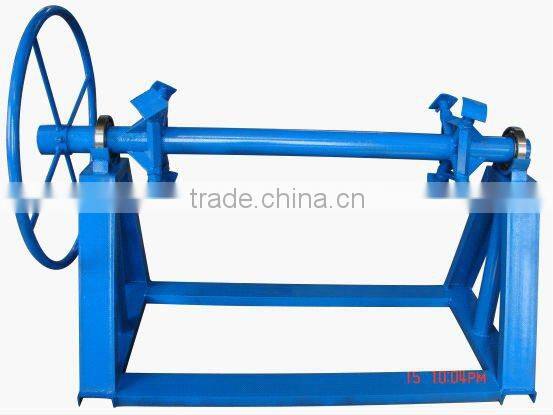

15	Equipment parts includes:5T decoiler, roll forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter.

Material of main equipment:

Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.

Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.

Cutting blade: Cr12 mould steel with quenched treatment.

They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.

Botou Golden Integrity Roll Forming Machine Co., Ltd.: Contact nameJie Yang
Chat Now; Phone86-317-8269160; AddressDevelopment Area, Botou
