JCX Car Panel Machine Made in China
- XINGANG
- T/T
You May Like
Product Details
| Type | Tile Forming Machine | Tile Type | Steel | |
| Use | Step | Place of Origin | Hebei, China | |
| Brand Name | JCX |
Product Description
Specifications

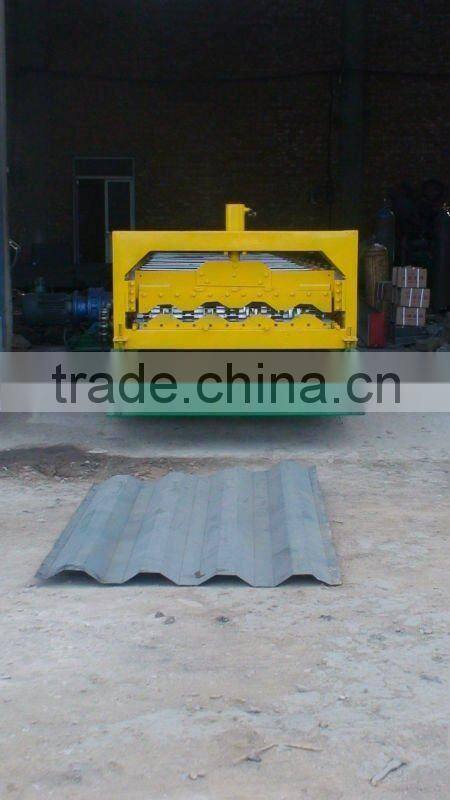

JCX Car panel machine made in China1.High Effciency
2,Little error
3,Quality is stable

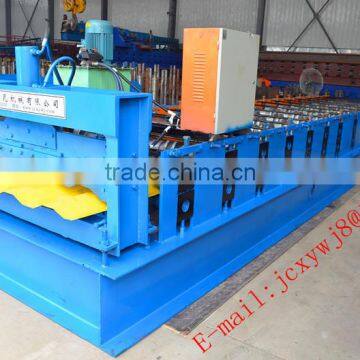

Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter
1.Leak frame load-bearing:4T
2. Rack: welding with 300H steel
3. The form of forming machine guiding filling: side skip
4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6.Chain: 0.6 inch single row
7. Main motor power:3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks
10. Roller material: high grade 45#steel
11 Hydraulic station power: 3kw
12 Hydraulic station oil pump: gearpump
13 Cutting type: hydraulic cut
14 Forming Cutting blade: Cr12
15 Heat treatment on cutting blade: HRC58°-60°
16 Thickness of coil sheet: 0.3-0.8mm
17 Coil width of material: 1000mm
18 Index error of length: ±2mm
19 Controlling system: PLC
20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.

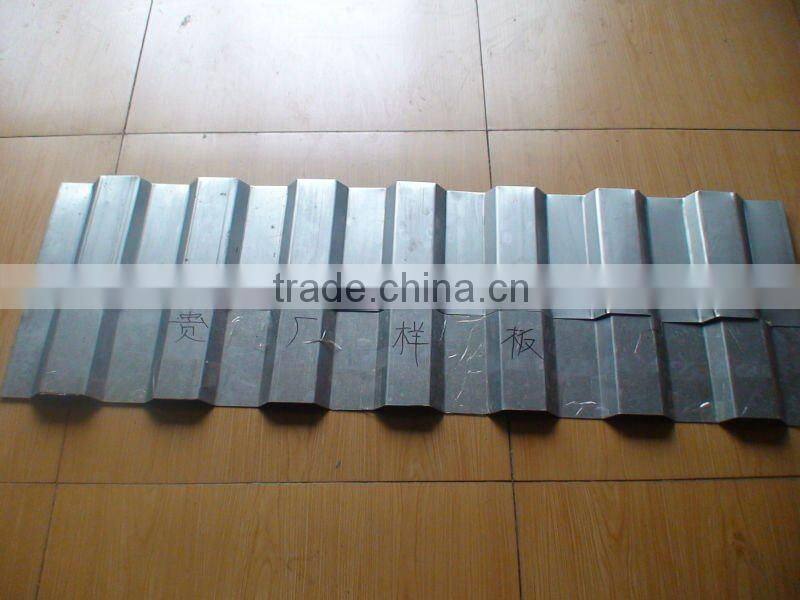

They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
