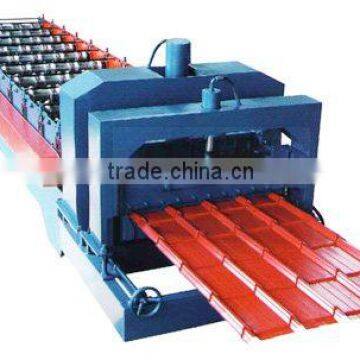

Machinery for Concrete Roof Tile
- tianjin
- T/T
You May Like
Product Details
| Type | Tile Forming Machine | Tile Type | Colored Steel | |
| Use | Roof | Place of Origin | Hebei, China | |
| Brand Name | JCX |
Product Description
Specifications
concrete roof tile making machine 1. Nice appearence.2. Low noise.
3. High efficiency.
4. Good quality.
5. Esay control
concrete roof tile making machine
1.1 Feeding width: 1000mm
1.2 Effective width: 910mm
1.3 Material thickness: 0.3-0.8mm
2. Process flow:
Decoiling--feeding---forming---cutting---production
3. Manual Decoiler:
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T
4. Forming Device:
4.1 Number of forming steps: 13 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 3kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phase
5. Cutting Device:
5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
6. Controlling Device:
6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2
7. Hydraulic:
7.1 Advanced hydraulic system from Taiwan
7.2 Power: 3kw
8. Simple output frame: Simple frame weld bu #8 U bar, 1 PCS of 3m
| Suitable to process | Steel plate |
| Width of the plate | 1000mm/1200mm/1250mm |
| Rollers | 9-11rows |
| Dimensions | 5.8*1.55*1.51m |
| Power | 4kw+4kw |
| Thickness of the plate | 0.3-0.7mm |
| Productivity | 8-10m/min |
| Diameter of the roller | ¢70mm |
| Weight | About 3.4T |
| Voltage | 380V 50Hz 3pha |
,
