Function Color Steel Sandwich Panel Made in China
- new port tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
JCX Produce Line of Sandwich Panel With Aluminum Foil Facings
-
New Type Eps Foam Sandwich Panel Production Line for Sale
-
JCX EPS&Cement Sandwich Panel Making Machine
-
EPS Aluminium Steel Composite Sandwich Panel Roll Forming Machine
-
EPS Composite Panel Cold Roll Forming Machine China Made
-
JCX--EPS Colored Steel Sanwitch Tile Production Line Color Roll Forming Machine for Steel
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Wall | |
| Production Capacity | 1000-4000mm/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | 35-125-750 | |
| Power(W) | about 40kw | Voltage | 380V | |
| Dimension(L*W*H) | :42000mm*3600mm*3300mm | Weight | 5-8 t | |
| Certification | TUV | Warranty | ONE YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
sandwich panel production lineeasy operation
high quality
reasonable price
high efficiency
Welcome to review our specifictions!

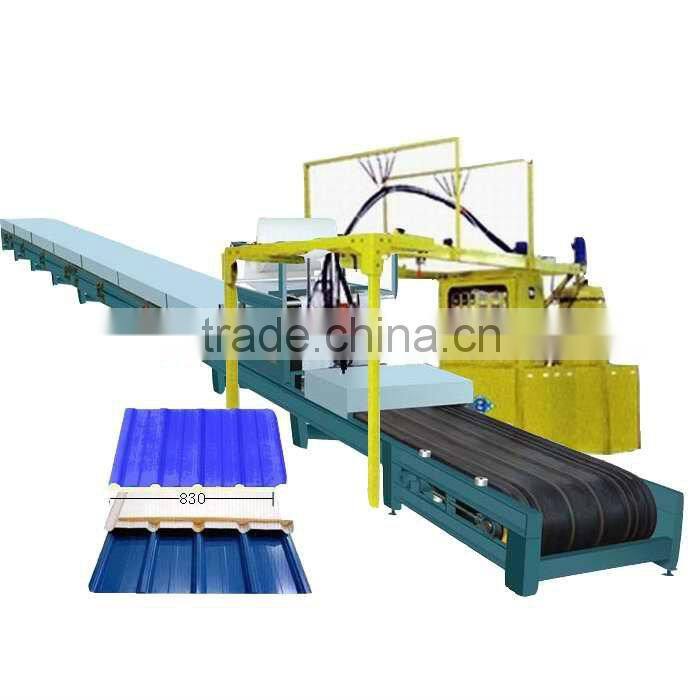

Expandable Polystyrene Sandwich Panel Machine maily consist of a roll forming machine and a sandwich panel laminating system.Though this line, corrugated sandwich panel can be produced directly, without the shortcoming that traditional corrugated sandwich panels have to be laminated manually after the forming of corrugated sheet. Moreover, both roll forming machine of the line consists of feeding system, roll forming system and cutting system, while the laminating system is made up of such equipment as uncoiler, feeding, squeezing,gelatinizing, heating,laminating,edge rolling, edge turnover, groove-making,edge pruning, pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts, merging mechanical and electrical equipments into an organic whole. Anual production of this line is about 600,000 square meters.
Main technical specification:
Size:42000mm*3600mm*3300(Length*width*height)
Total weight: about 25000kg
controlling system:PLC
total power:about 40kw
working speed:1000-4000mm/min
suitable working temperature: about 25°C
density of EPS:>16kg/m3
Suitable material for production
Suitable material of out layer: colored galvanized steel sheet
Recommended internal material: polystyrene product usage

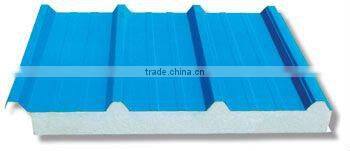

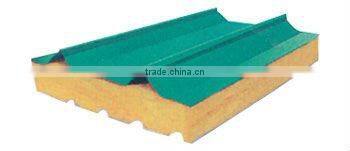

The products of this line are widely used as the roof and wall of factory, warehouse, garage, exhibition center, cinema, theatre, gymnasium, civil construction, stadium, cold storage,etc.
Thank you for your time!
