Eps Sandwich Panel Machine Trapezoidal Roofing Sheet Roll Forming Machine
- XINGANG TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
EPS Rockwool Glasswool Aluminium Sandwich Panel Multi-functional Roll Forming Machine
-
EPS Z-lock Sandwich Panel Roll Forming Machine
-
Polystyrene Foam Sheet Making Machine/Cold Room Sandwich EPS Panel Production Line Roll Forming Machine
-
Eps Sandwich Roll Forming Machine/ Sandwich Panel Eps/ Eps Sandwich Panel Production Line
-
China Eps Sandwich Panel Roll Forming Machine for Wall Board
-
EPS and Rock Wool Sandwich Panel Forming Machine | 3D Wall Panel Machines
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 3-6m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | sandwich panel-2 | |
| Power(W) | 45kw | Voltage | 380V 50hz three-phase | |
| Dimension(L*W*H) | 35m*2.2m*2.8m | Weight | 25000kg | |
| Certification | CE ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
EPS sandwich panel roll forming machine,sandwich panel making machine,sandwich panel roll forming machine
Details of sandwich panel forming machine as follows:

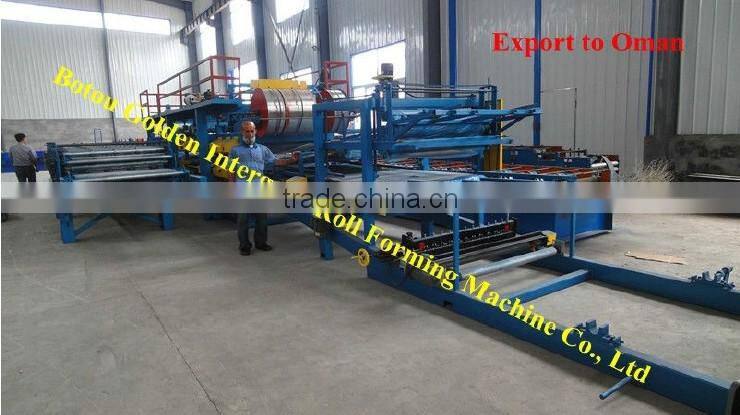

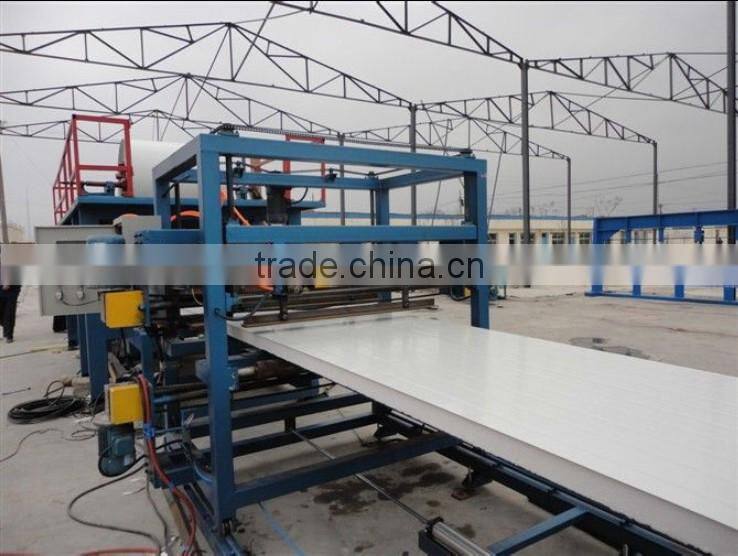

1. General performance of the line
1) Material thickness: 0.3-0.6mm
2) Material width: max 1250mm
3) Core material: EPS board/Rockwool Board
4) Line speed:3-6 m/min
5) Power supply: 380V/ 50Hz/ 3Phase
6) Total power: 45kw
7) Dimension: about 40m*2.2m*2.8m
8) Product width: 1000mm/ 1200mm
9) Product thickness: 50-200mm
10) Annual output: 600,000 m2
2. Working flow
1) Decoiling: feeding of the material for bottom metal strip.

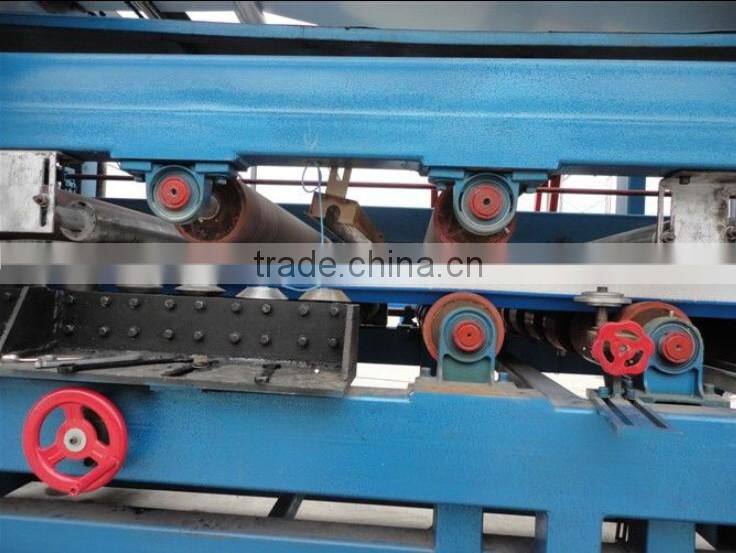

2) Roll forming: producing the bottom metal strip for roof or wall panel.
3) EPS feeding table: placing the middle part of the sandwich panel.
4) Dripping glue onto the top and bottom metal strip.
5) Heading the strips for better adhesion of glue.
6) Rolling edges of the strips.
7) Connecting parts and roll forming together.

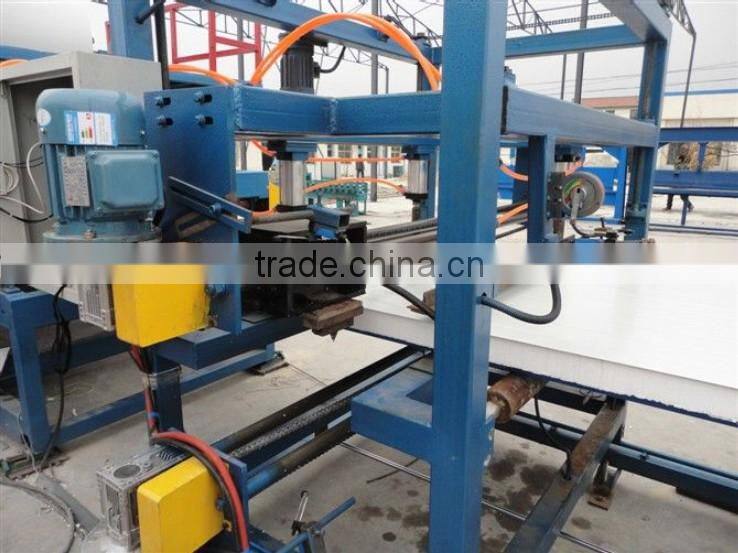

8) Make slot (milling cutting to cut the extra parts of EPS) of panels for specific length.
9) Confirming length.

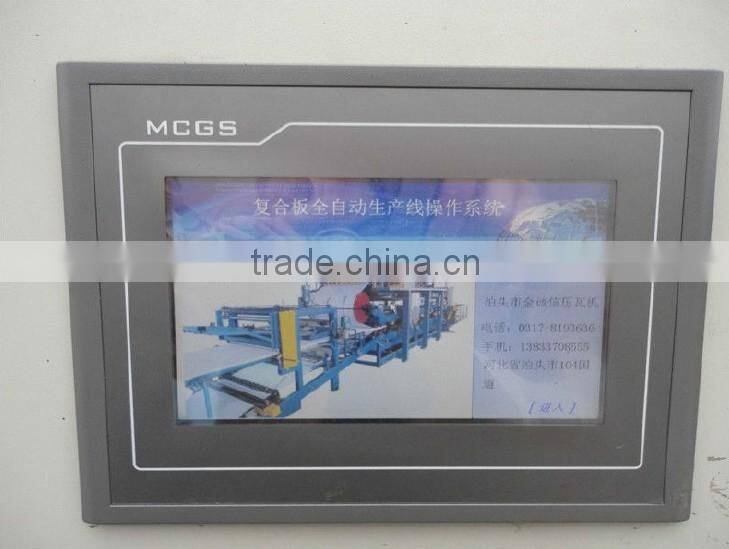

10) Cutting adjusted by PLC.
11) Runout table.

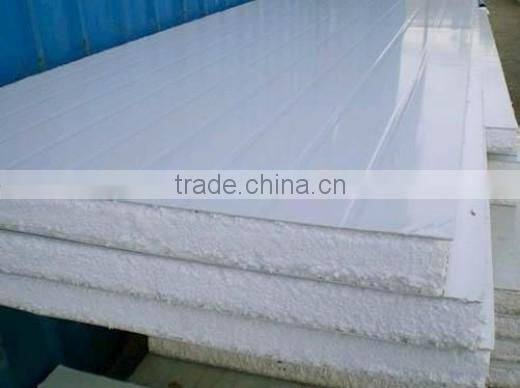

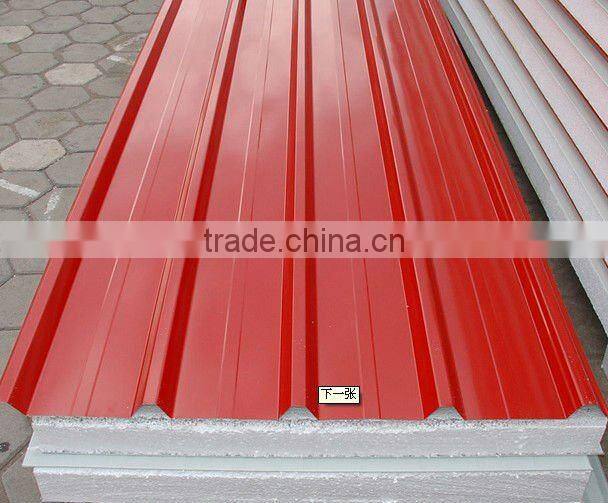

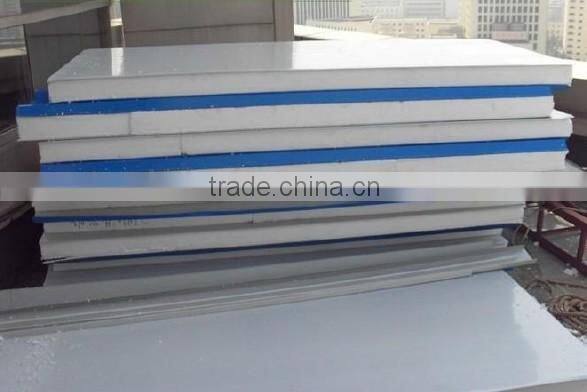

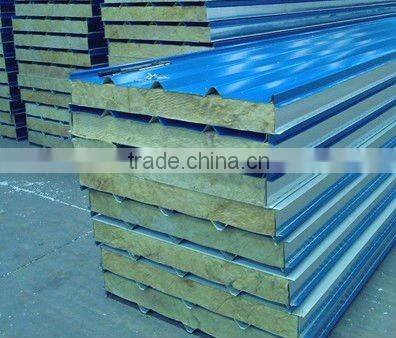

The production of sandwich panel:
CHOOSE THE BEST!!! CHOOSE THE GOLDEN QUALITY!!!
THANKS FOR YOUR TIME!!!
