China Downspouts and rainspout pipe roll forming machine for sale

4kw downspout roll forming machine with bender,downspout roll forming machine,downspout machine

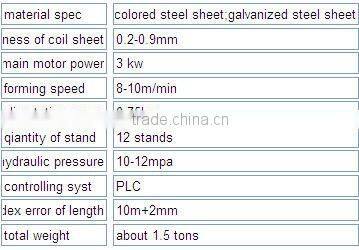

Technical Parameters

liveshoot in workshop

1.K type of water channel machine:

2. semi-cicular type of water channel:

 3. circular type of water channel:

4.square type of water channel

bender machine:

parts of sample:

The machines our company produce have the features:

1.The color of pipe is various chosen by customers.

2.High self-locking, no leaking, the whole effect is stronger.

3.The machine can produce various foldig products, suitable to various wall sheets.

We have a lot cutomers all over the word such as Indian,  Nigeria,Afica,Russia,Burma,Pakistan,Euro, etc., and  we have long stable cooperation.

Details of downspout roll forming machine as follows:

1. General performance of the line

Pipe forming part:

1) Decoiler: Expansion type,max ,loading1-2T

2). Roller station:24 stations,three-dimensional correction

3). Material of mould :45# forge steel ,finish machining and plated with hard chromium

4). Diameter of the roller: Φ62mm,formed by the modulation finishing

5). The frame of the machine is 350 H steel ,the side board is made of 16mm steel structure

6). Main power:4 kW(2sets) cycloidal needle wheel type motor, birdirectional drive ( P=25.4 )

7). Cutting-to-length system:using flying saw cutting

8). Size of the main machine :11.8*1.2*0.9m(divided into two stages)

Pipe Bending Part:

1). Wall panel:22mm steel welding

2).Power::3kw

3).Driving method: two rows of 1 inch chain.

4).Operational principle:Rack mechanical driving

5).Control method: PLC

6).Apperanace size:1.2*1.5*0.8m

2. Working flow

1) Decoiling: feeding of the material for bottom metal strip.

2) Roll forming: producing the bottom metal strip for roof or wall panel.

3) Raw material feeding table: In order to feeding the mmaterial straightly.

4) Main forming station: shaft material is 45# steel forged,roller material is 45# bearing steel.

5) Cutting system: fly saw cutting system

6) Controlling system: All the production line will controlled by the PLC,realized the full- automatic.

7) The counter: every machine we will provided several extra counters for the damage of the counter.

8) Run-out table:we have different kinds of receiving table,the simple one,the auto-stacker or other designed run out table,we can designed it according your demand.

9) Pipe Bending Part.

10) We will provided a whole production line if you have no special requests.

The production of downspout roll forming machine:

♣ Payment:T/T,L/C,cash.

♣ Payment terms:EXW,C&F,CIF are available.

♣ Delivery:within 30 working days.

♣ warranty:In correct operation and maintance,the machine is one year guarantee since leaving the seller's factory,and we will provide technical support for the machine.

♣ Installation:If buyer needed,the seller will send one or two technician to the buyer's factory to install & testing the machine.

♣ Q: Can you make the machine according to my design or prototype?

A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us

♣ Q: What do you need to know so that I can have a machine plan from you for our technical people reference?

A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
♣ Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period

Our machine advantage:

Our customers:

We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China. We manufacture various kinds of roll forming machine for producing the following products. Such as Roof  Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck,  C & Z Purlin, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe...etc.

Exellent Quality & Compositive Price !

Golden Integrity is our service purpose forever!

Welcom for info by E-mail!
