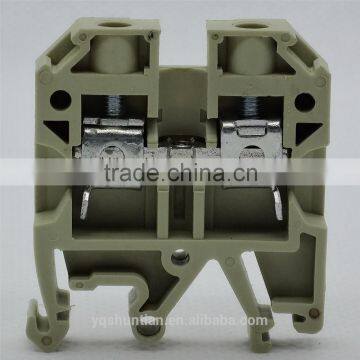

SAK10 Common Din Rail screw terminal block connector Switch cabinet or Distribution
Negotiable
/ Piece
200 Pieces(Min.Order)
- 0 per Month
- ningbo
You May Like
-
SAK2.5 Screw Din Rail Mount Double Deck Papepp Terminal Connector terminal block connect uk terminal
-
SAK16 Screw Din Rail Mount Double Deck Papepp Terminal Block connector Hottest 600V Beige
-
wago UK 5N rail type terminal block TUV CSA UK DIN RAIL SCREW CLAMP
-
UK3N din rail terminal blocks push wire connector PAPEPP
-
UK terminal block / quick wago terminal blocks / electrical connector uk2.5
-
wago UK6N series din rail terminal block brass terminals
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHT | |
| Model Number | SHT2-10 (SAK10E/N) | Type | Screw Terminal |
Product Description

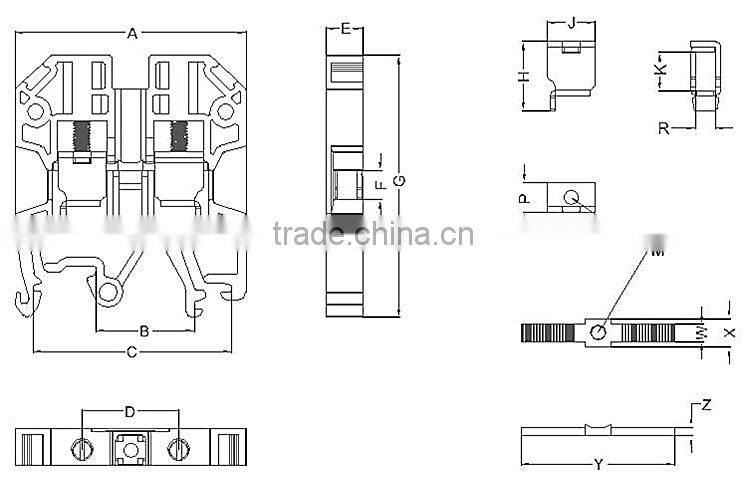

Basic technical data
| Model | A | B | C | D | E | F | G | H | J | K | P | R | W | X | Y | Z | M |
| SHT2-2.5 SAK2.5 | 40.5 | 17.3 | 34.8 | 15.5 | 6.2 | 5 | 40.5 | 10.5 | 7.5 | 5.2 | 4.8 | 3.2 | 2.6 | 4.5 | 23.8 | 1.5 | 3X0.5 |
| SHT2-4 SAK4 | 40.5 | 17.3 | 34.8 | 17 | 6.5 | 5.2 | 46 | 12.1 | 8.5 | 6.8 | 5.3 | 3.5 | 3 | 5 | 27 | 1.5 | 3X0.5 |
| SHT2-6 SAK6 | 40.5 | 17.3 | 34.8 | 18 | 8 | 5.2 | 46 | 14.5 | 8.5 | 7 | 6.5 | 4.5 | 4.3 | 6 | 30 | 2 | 3.5X0.6 |
| SHT2-10 SAK10 | 40.5 | 17.3 | 34.8 | 19 | 10 | 7.5 | 46 | 15 | 8.5 | 8 | 8 | 5.6 | 5 | 30 | 2.5 | 4X0.7 | |
| SHT2-16 SAK16 | 50.3 | 17.3 | 34.8 | 21 | 12 | 8.2 | 51 | 18.5 | 10 | 9 | 9.5 | 6.5 | 6 | 34.5 | 3 | 4X0.7 |
Description: |
SHT2-10 (SAK10E/N) |
Wire Range: | 0.2~10mm² |
Rated Current: | 800V 57A |
Insulation Material: | PA66 |
| Packing: | 100PCS |
