TT600 CCS APPROVAL MARINE TUNNEL THRUSTER (GQ)
- SHANGHAI CHINA
- T/T Credit Card
You May Like
-
IACS APPROVAL TT700 MARINE TUNNEL THRUSTER (GQ)
-
Marine Bow Thruster/Electric Bow Thruster/Ship Propeller for Sale
-
Marine Controllable Bow Thruster/Electric Bow Thruster
-
CCS EC Approved Bow Thruster Fixed/Controllable Pitch Tunnel Thruster
-
IACS Marine Bow Thruster/ Tunnel Thruster/Electric Bow Thruster
-
IACS Boat Fixed/Controllable Electric Bow Thruster for Sale
Product Details
| Material | Copper | Certification | Other, CCS/BV/EC | |
| Blades | 4 | Diameter (mm) | AZIMUTH THRUSTER 500mm |
Product Description

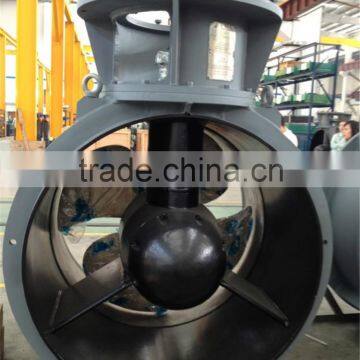

TT600 CCS APPROVAL MARINE TUNNEL THRUSTER (GQ)
The products get the certificate respectively by CCS, BV, RINA etc.
Functional Characteristics
· Rudder and thruster in one.
· Rudder propeller can steer in any direction of 360° above the water level
Advantage
· Provide all-around thrust
· Increase the operation flexibility of the vessel
Application
Large tugboat, harbor tug, drilling platform vessel, ocean engineering vessel
Installation Type
Models
Type | Propeller Dia. Max.(mm) | Input Power Max.(kw) | Input Speed (RPM) | Frequency (Hz) | Max. Thruster (kN) | Reduction Ratio | Standard Inner (mm) | Propeller Type |
TT500 | 500 | 63 | 1450 | 50 | 10 | 1.52 | 515 | FP |
72 | 1750 | 60 | 11.2 | |||||
TT600B | 600 | 63 | 1450 | 50 | 10 | 1.52 | 615 | FP |
72 | 1750 | 60 | 11 | |||||
TT600 | 600 | 90 | 1450 | 50 | 14.5 | 2.071 | 615 | FP |
105 | 1750 | 60 | 16.3 | |||||
TT700 | 700 | 140 | 1450 | 50 | 21 | 2.071 | 715 | FP |
165 | 1750 | 60 | 24.8 | |||||
TT800B | 800 | 140 | 1450 | 50 | 21 | 2.071 | 818 | FP |
165 | 1750 | 60 | 26 | |||||
TT800 | 800 | 180 | 1450 | 50 | 29.5 | 2.417 | 818 | FP |
190 | 1750 | 60 | 30.5 | |||||
TT900 | 900 | 250 | 1450 | 50 | 40 | 2.417 | 918 | FP |
300 | 1750 | 60 | 46 | |||||
TT1100B | 1100 | 250 | 1450 | 50 | 40 | 2.417 | 1132 | FP |
300 | 1750 | 60 | 46 | |||||
TT1000 | 1000 | 280 | 1450 | 50 | 43 | 3.09 | 1032 | FP/CP |
290 | 1750 | 60 | 15.2 | |||||
TT1100 | 1100 | 315 | 1450 | 50 | 49 | 3.09 | 1132 | FP/CP |
340/335 | 1750 | 60 | 53.8 | |||||
TT1300B | 1300 | 400 | 1450 | 50 | 62 | 3.7 | 1340 | FP/CP |
440 | 1750 | 60 | 64 | |||||
TT1300 | 1300 | 445 | 1450 | 50 | 67 | 3.78 | 1340 | FP/CP |
480 | 1750 | 60 | 73 | |||||
TT1480 | 1480 | 560 | 1450 | 50 | 88 | 4.364 | 1520 | FP |
620 | 1750 | 60 | 95 | |||||
TT1650 | 1650 | 680 | 1450 | 50 | 105 | 4.727 | 1692 | FP/CP |
730 | 1750 | 60 | 110 | |||||
TT1800 | 1800 | 900 | 1450 | 50 | 135 | 4.455 | 1842 | FP/CP |
750 | 1190 | 60 | 116 | |||||
TT2000 | 2000 | 1050 | 1450 | 50 | 165 | 4.82 | 2038 | FP/CP |
900 | 1190 | 60 | 150 | |||||
TT2200 | 2200 | 1150 | 980 | 50 | 186 | 4.65 | 2242 | FP/CP |
1400 | 1190 | 60 | 220 | |||||
TT2400 | 2400 | 1580 | 980 | 50 | 250 | 4.636 | 2442 | FP/CP |
1720 | 1190 | 60 | 260 | |||||
TT2800 | 2800 | 2000 | 980 | 50 | 298 | 4.395 | 2848 | CP |
1910 | 980 | 60 | 297 |
If any more details,please contact us by below card, 24-hours Service
