China manufacture graphite rod types of bearings bronze wrapped bushing customized OEM
- shanghai port ningbo port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Industrial spherical plain bearings/radial spherical plain bearing/spherical bearing
-
china factory competitive price graphite sleeve bearing bushing graphite bushing
-
bearing supplier buy direct from factory brass bushing
-
new bearing products spherical rubber plain bearing
-
fast supplier low price copper bushing
-
Customized Self-lubricating Bronze Bushing ,Thin Wall Bearing Sleeve Type,bronze bushing
Product Details
| Place of Origin | Anhui, China | Brand Name | Yifang Zhijia | |
| Model Number | graphite rod | Type | Other, Sleeve, graphite rod | |
| Material | Bronze+Graphite |
Product Description

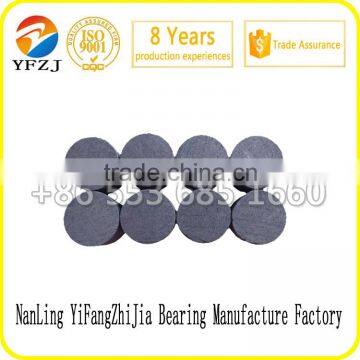

China manufacture graphite rod types of bearings bronze wrapped bushing customized OEM
The standard range of composite plain bearings is very comprehensive and covers almost every standard size. This range comprises straight and flanged bushings, thrust washers and strips.
Sleeve Bearings:
Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Max. Length |
DU,SF-1 | 6mm | 8mm | 300mm | 305mm | 100mm |
DX,SF-2 | 10mm | 12mm | 300mm | 305mm | 100mm |
JF800 | 10mm | 12mm | 173mm | 180mm | 100mm |
FB090 | 10mm | 12mm | 300mm | 305mm | 100mm |
FB092 | 10mm | 12mm | 300mm | 305mm | 100mm |
JDB,JCB | 8mm | 12mm | 160mm | 180mm | 150mm |
FU | 1.5mm | 3mm | 50mm | 70mm | 70mm |
JGB | 1.5mm | 3mm | 300mm | 320mm | 100mm |
I.D. = inner diameter
O.D. = Outer diameter
Flange Bearings:
Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Min.F.D. | Max.F.D. | Max. Length |
DU,SF-1 | 6mm | 8mm | 40mm | 44mm | 12mm | 53mm | 40mm |
JF-800 | 40mm | 46mm | 95mm | 105mm | 60mm | 144mm | 127mm |
FB090 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
FB092 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
JDB | 10mm | 14mm | 120mm | 140mm | 22mm | 170mm | 100mm |
FU | 6mm | 12mm | 50mm | 60mm | 14mm | 70mm | 70mm |
JGB | 6mm | 12mm | 300mm | 320mm | 35mm | 340mm | 130mm |
I.D. = inner diameter
O.D. = Outer diameter
F.D. = Falnge diameter
Technical Parameters:
Max Load Pressure | Static load | 120N/ mm2 | Hardness | HB 90-120 |
Dynamic | 40N/ mm2 | Extension Rate | 40% | |
Max Sliding Speed V |
| 2m/s | Working Temperature | -100℃~+200℃ |
Maximun PV value |
| 2.8N/mm2.m/s | FrictionCoefficient | 0.01~0.05 |
Tensile Strength |
| 450N/mm2 | Thermal Conductivity | 60W(m.K)-1 |
Yield Strength |
| 250N/mm2 | Coefficient of thermal expansion | 12x10-6K |
Processing Form:
Our Advantages for bearing graphite rod
1.Insensitive to dirty environments
2.Resistant to shock loads and vibrations at slow speeds
3.Good resistance to corrosive conditions
Application
graphite rod Bronze Solid Lubricating Bearings Bronze material as the base, made of solid lubricants embedded inthe surface. Due to the high elongation ofthe copper alloy material as the substrate, it can be made especially thin rolledbushings, plus the ideal filler material is anti-wear agent, it is applied in the automotive transmission as a wear sleeve use can also be used in other occasions
DU bushes
DX bushes
Flange bearing
Bimetal bush
Bronze bush
Bimetal graphite bush
Bronze graphite wrapped bush
Bronze graphite bearing
Thrust washer
Ball retainer
Oilite bushes
