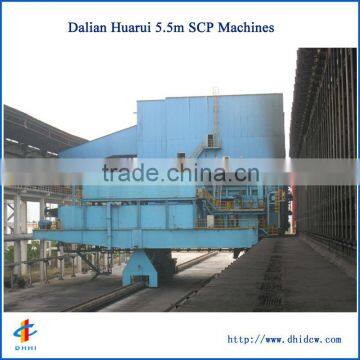

Dalian Huarui 5.5m SCP Machines

Specifications

Dalian Huarui 5.5m SCP Machines

Function:

The 5.5m SCP Machines working on the coke side of coke oven, the belt conveyor feeding the coal into the hopper of the SCP machine.When it is stamping ,the coal is feeded into the stamping coal scuttle through the shake feeders.The automatic operating stamping machines are installed on the top of the coal scuttle,the tamping hammer stamping the coal in the coalscuttle into coke cake,the charging device feeds the coke cake to the oven chamber from the machine-side door.The pusher device push the hot coke out of the oven chamber. Auxiliary functions can be configured with door cleaner device, frame cleaner device,briquette cutting device,spillage coke device etc.All the system devices are controlled by the electrical program,make sure that the SCP machine is efficient, stable, and smart to complete the production tasks.

Feature:( Technological Characters Of Dalian Huarui 5.5m SCP Machines :)

1.DHHI has its independent intellectual property;

2.Environmental Protection, High Efficiency and High Reliability;

3.One spot postioning,5-2 serial sequence and safety interlocking;

4.Automatic Alignment & Oven Identicifaction system with Spotting accuracy ±5mm;

5.Oven temperature detecting function;

6.With emergency system in case of power failure;

7.Stable and high efficiency Stamping, Charging and Pushing;

8.VVVF Speed Control technology is used for traveling device;

9.Executive mechanisms are drived by hydraulic cylinders (or built-in MTS hydraulic cylinders)

10.The encapsulation technology is used for coal charging operation;

11.Mechanized Automatic Oven Door Extractor with memory function;

12.Mechanized (High presser water) automatic Oven Door Cleaner;

13.Mechanized automatic Oven Jamb Cleaner;

14.Mechanized Automatic Cleaning for the Bottom of Ascension Pipe;

15.Mechanized automatic Spillage Coke and Coal Collecting;

Description of Dalian Huarui 5.5m SCP Machines :

(For reference only, the design can be personalized according to user requirements)
